GVW                                               Driving Type 4x2

Model

CLW

Cab

Double row cab, allowable 3 passengers.

Engine(Hp)

82

Power(Kw)

60

Wheelbase

3300

Front/Rear Suspension

1032/1663

Steering

Power steering

Approach/departure angle

19/15

Wheels & tire

7.00R16

Tire number

6+1

Cargo dimension(mm)

2200x1800x400

Working height(m)

10

RHD or LHD

optional

Overall Dimensions(mm)

5995×2000×2600

Curb weight (Kg)

3200

Engine

Model

CY4100Q

Horsepower

82

Maximum output Kw

60

Maximum torque N.m

Type

4cylinders, in-line,4-stroke,diesel engine

Displacement

3.7L

Chaoyang brand, Euro 2

Driving passenger

2+3

Transmission

5 speed forward and one reverse, manual

Front Axle

2T

Rear Axle

4T

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

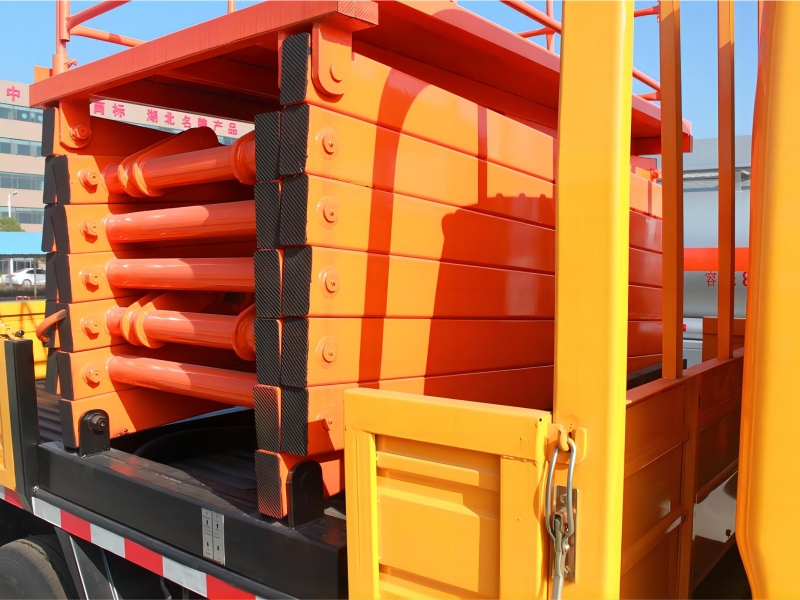

working platform, “H” legs(Each leg is controlled individually), van body

Equipment

Platform Dimension

1585X1805X955 mm

Max Working Height

10m

Max Working Radius

straight

Platform Loading

500kg

Platform Passenger

2

Working pressure

14MPa

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
