GVW                                                Driving Type 4x2

Model

CLW

Cab

Yuejin H100 cab, tilted,air con optional

Engine(Hp)

129

Power(Kw)

95

Wheelbase

3308

Front/Rear Suspension

1050/1637

Steering

Power steering

Approach/departure angle

25/16

Wheels & tire

7.50-16

Tire number

6

Tank capacity(m3)

4/5

RHD or LHD

LHD

Overall Dimensions(mm)

5990×2000×2500

Curb weight (Kg)

3565

Engine

Model

YN38CRE1

Horsepower

129

Maximum output Kw

95

Maximum torque N.m

320

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

3.76L

Yunnei engine brand, Euro 2

Driving passenger

2

Transmission

WLY 5 speed forward and one reverse, manual,with auxiliary gear

Front Axle

2.5T

Rear Axle

4.5T

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

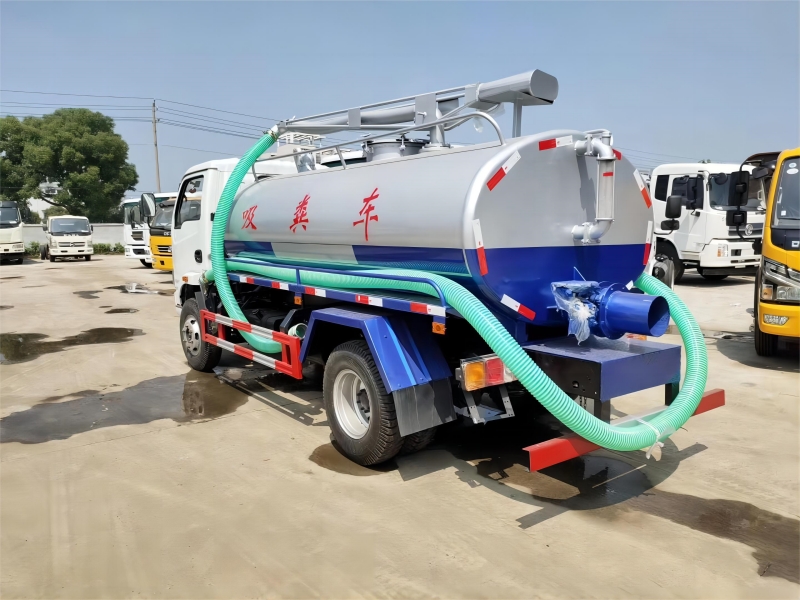

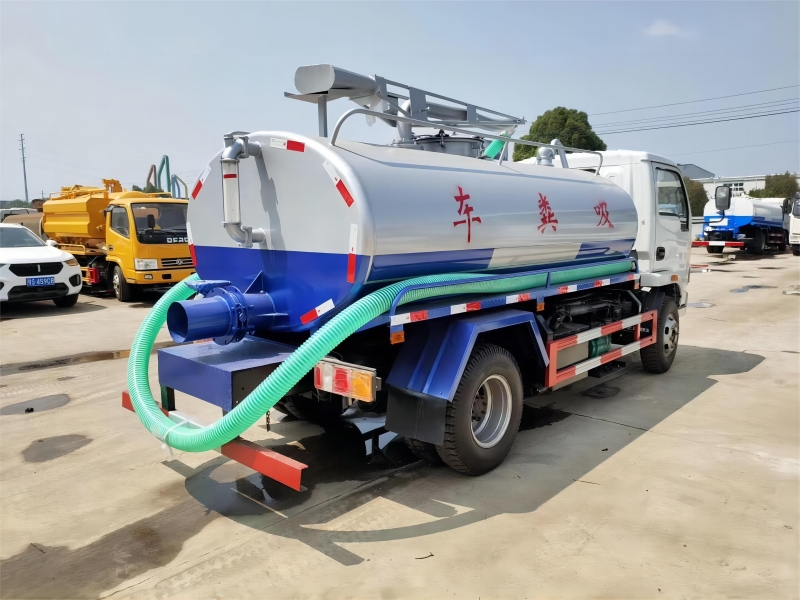

carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump, oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve

Optional configuration

Watering system, liquid full alarm device

Delivery date

Within 10 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
