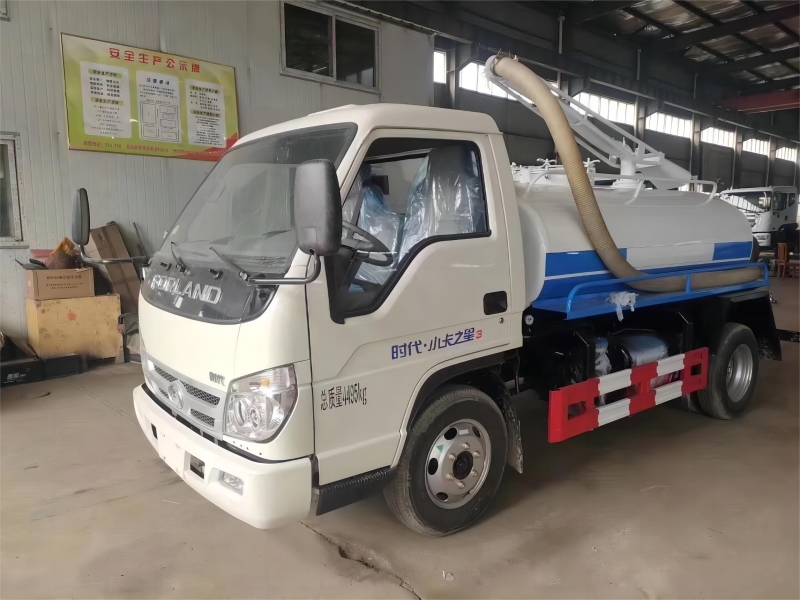

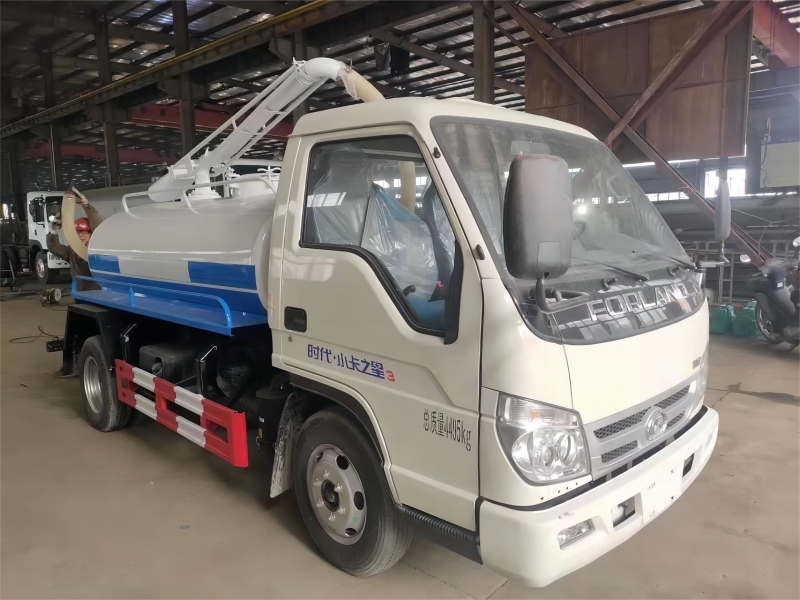

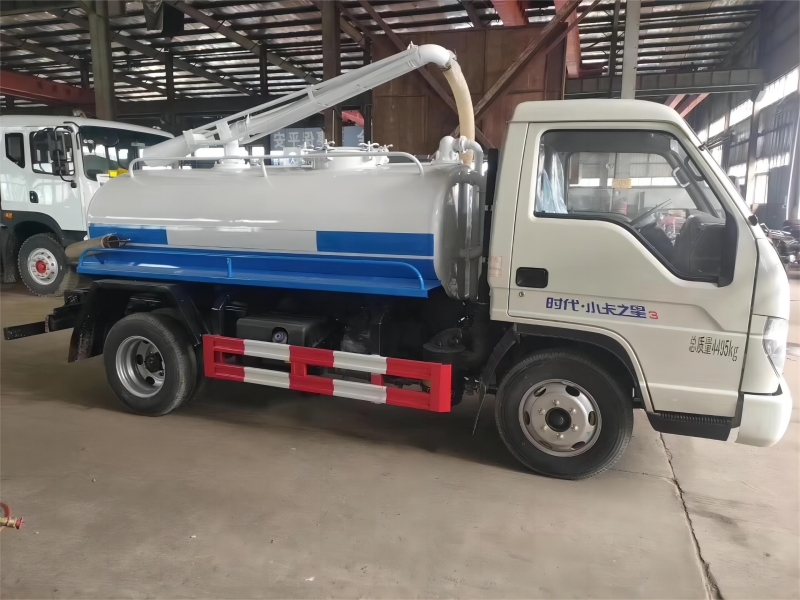

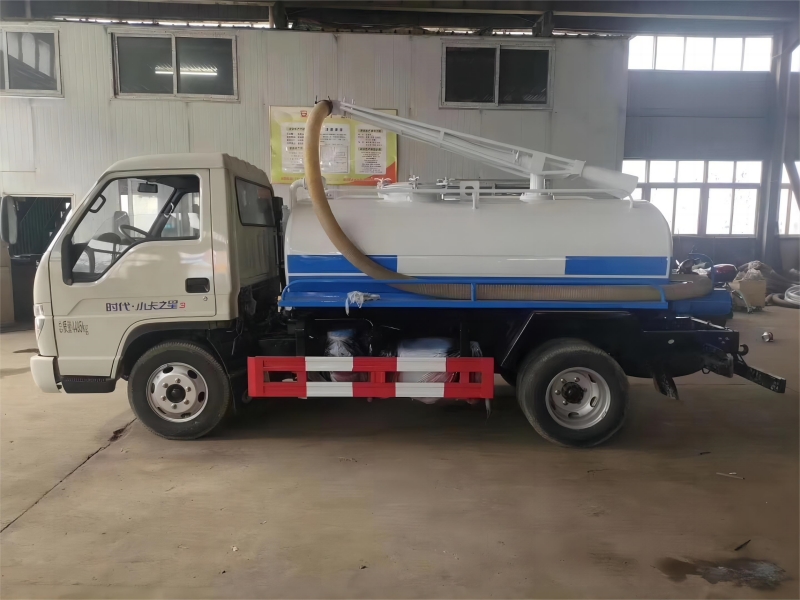

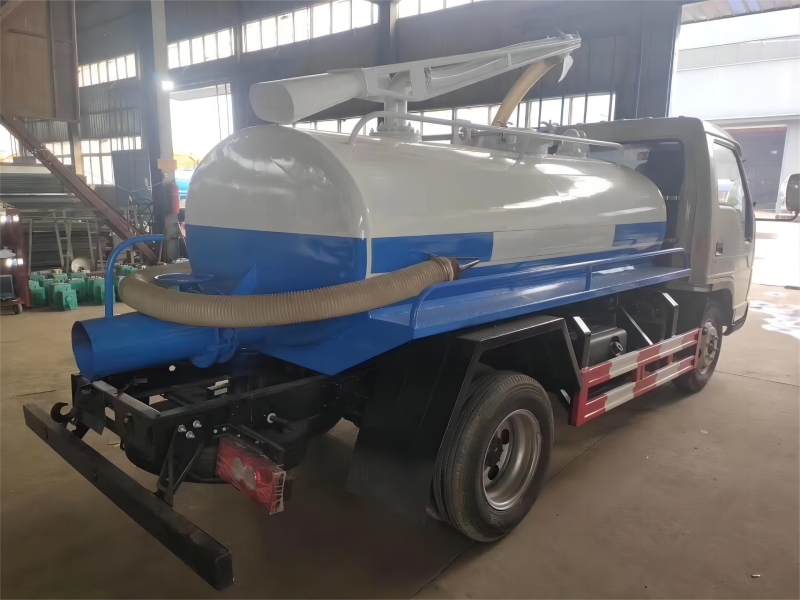

Foton 4m³ fecal suction truck

  • Model brandCLW
  • Chassis brandFoton
  • Capacity4m³
  •   Sales manager: Mike Yin
  •   Phone: +86 13135737018
  •   Email: mikeyin1990@hotmail.com
  • Whatsapp online:
  • Whatsapp qr code

Product Presentation

Product specification

GVW                                                   Driving Type 4x2

Model

CLW

Cab

One row cab, tilted

Engine(Hp)

57

Power(Kw)

42

Wheelbase

3360

Front/Rear Suspension

1085/1545

Steering

Power steering

Approach/departure angle

23/19

Wheels & tire

6.5-16

Tire number

6+1

Tank capacity(m3)

4/5

RHD or LHD

LHD

Overall Dimensions(mm)

6000×2000×2500

Curb weight (Kg)

3800

Engine

Model

N490QQB

Horsepower

57

Maximum output Kw

42

Maximum torque N.m

140

Type

4 cylinders, in-line,4-stroke,diesel engine

Displacement

2.544L

Quanchai engine brand, Euro 2

Driving passenger

2,3

Transmission

5 speed forward and one reverse, manual

Front Axle

2T

Rear Axle

4T

Brake System

Oil brake

Color and LOGO

customized

Electric system

24V

Standard configuration

carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump, oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve

Optional configuration

Watering system, liquid full alarm device

Delivery date

Within 20 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
