GVW                                                Driving Type 4x2

Model

CLW

Cab

ISUZU 700P cab, tilted,air con

Engine(Hp)

190

Power(Kw)

140

Wheelbase

3815

Front/Rear Suspension

1110/1560

Steering

Power steering

Approach/departure angle

21/27.4

Wheels & tire

235/75R17.5

Tire number

6+1

Tank Dimensions(mm)

4000×2100×600,800

Cubage (m3)

Steel thickness

Side 3 ,Bottom 4

RHD or LHD

LHD

Overall Dimensions(mm)

6500×2250×2400

Curb weight (Kg)

4950

Engine

Model

4HK1-TC51

Horsepower

190

Maximum output Kw

140

Maximum torque N.m

510

Type

4 cylinders, in-line,4-stroke ,turbo inter-cooling, high pressure common rail, diesel engine

Displacement

5.193L

ISUZU brand, Euro 5

Driving passenger

3

Transmission

ISUZU MLD 6 speed forward and one reverse, manual

Front Axle

4T

Rear Axle

7T

Brake System

air brake

Color and LOGO

customized

Electric system

24V

Standard configuration

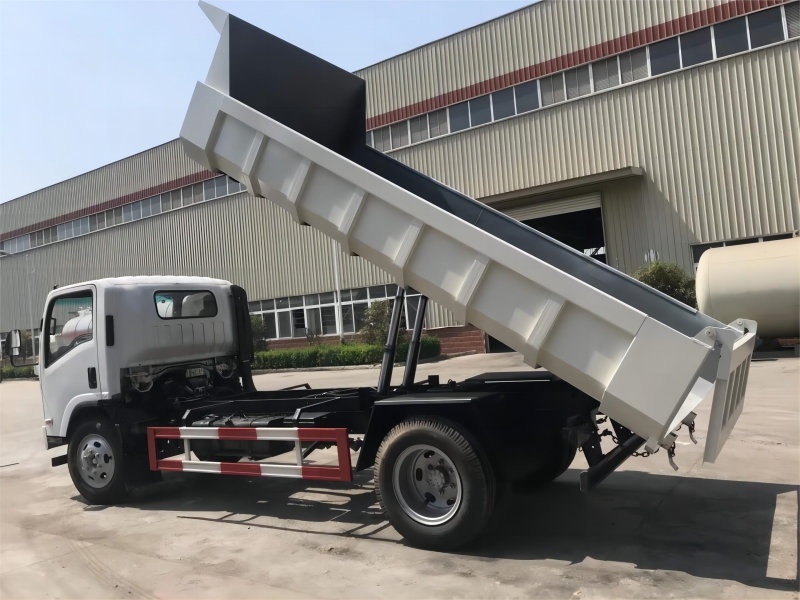

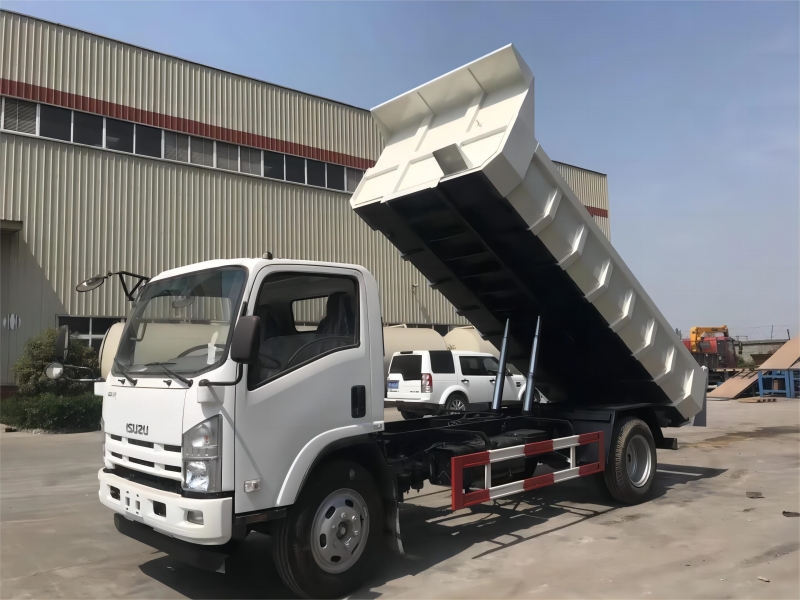

The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 3mm, bottom 4mm.

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
