Shacman 20-30T dump truck

  • Model brandCLW
  • Chassis brandShacman
  • Capacity20-30T
  •   Sales manager: Mike Yin
  •   Phone: +86 13135737018
  •   Email: mikeyin1990@hotmail.com
  • Whatsapp online:
  • Whatsapp qr code

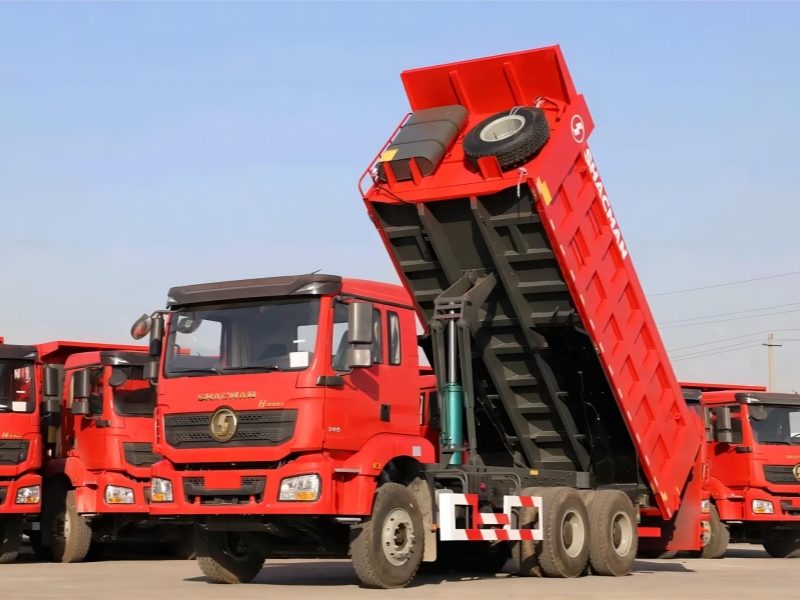

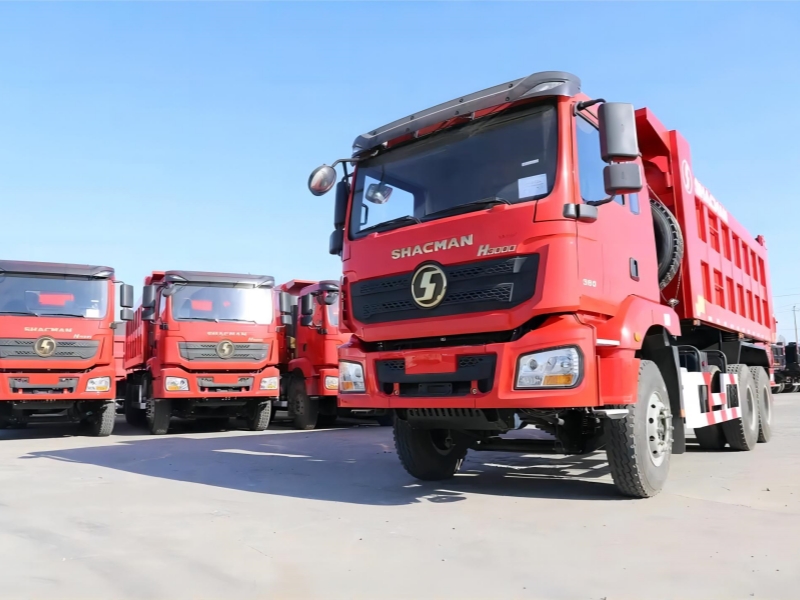

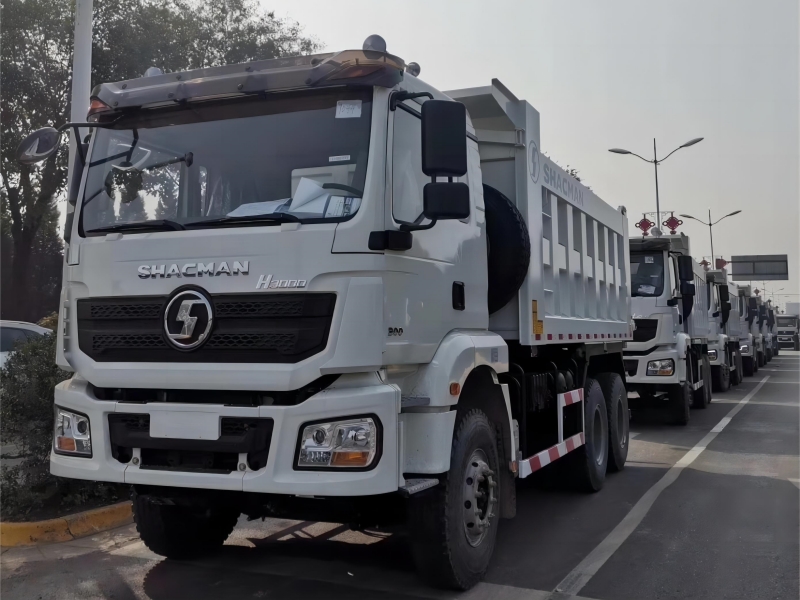

Product Presentation

Product specification

GVW                                                    Driving Type 6x4

Model

CLW

Cab

SHACMAN H3000 four-point hydraulic suspension cab,electric automatic constant temperature air conditioner,power window,ordinary air filter,central lock,hydraulic major seat,tilt,metal bumper

Engine(Hp)

340

Power(Kw)

250

Wheelbase

3775+1400,3800+1350

Front/Rear Suspension

1525/1825

Steering

Power steering

Approach/departure angle

28/16

Wheels & tire

12.00R20

Tire number

10+1

Tank Dimensions(mm)

5400,5600×2300×1200,1500

Cubage (m3)

18/20

Steel thickness

Side 6 ,Bottom 8

RHD or LHD

optional

Overall Dimensions(mm)

8200,8500×2500×3450

Curb weight (Kg)

12400

Engine

Model

WP10.340E22

Horsepower

340

Maximum output Kw

250

Maximum torque N.m

1350

Type

6cylinders, in-line,4-stroke,turbo inter-cooling, diesel engine

Displacement

9.726L

Weichai brand, Euro 3

Driving passenger

2,3

Transmission

FAST 10 forwards,2 reverse,manual

Front Axle

9.5T

Rear Axle

16T x2

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm.

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
