Dongfeng 15m³ flushing sweeping truck

  • Model brandCLW
  • Chassis brandDongfeng
  • Capacity15m³
  •   Sales manager: Mike Yin
  •   Phone: +86 13135737018
  •   Email: mikeyin1990@hotmail.com
  • Whatsapp online:
  • Whatsapp qr code

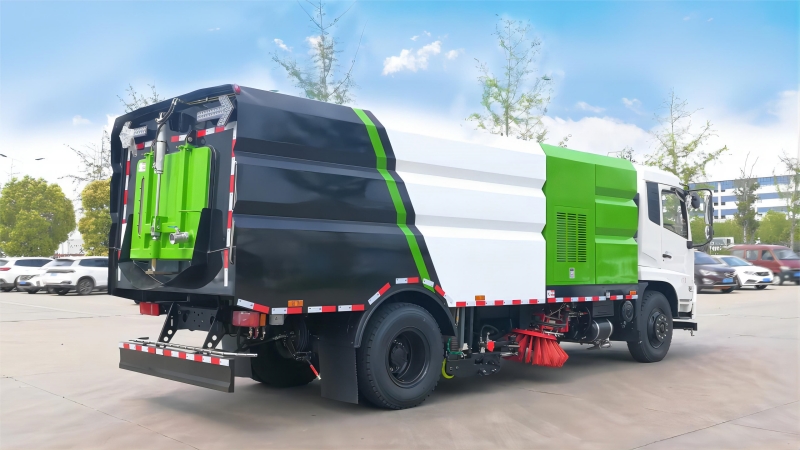

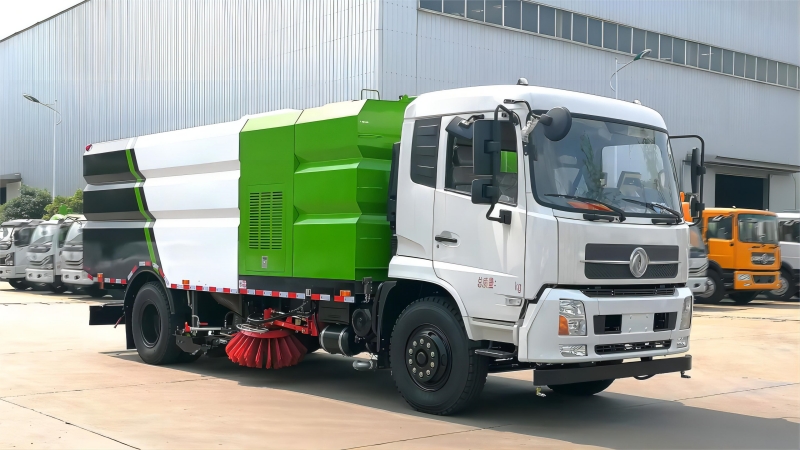

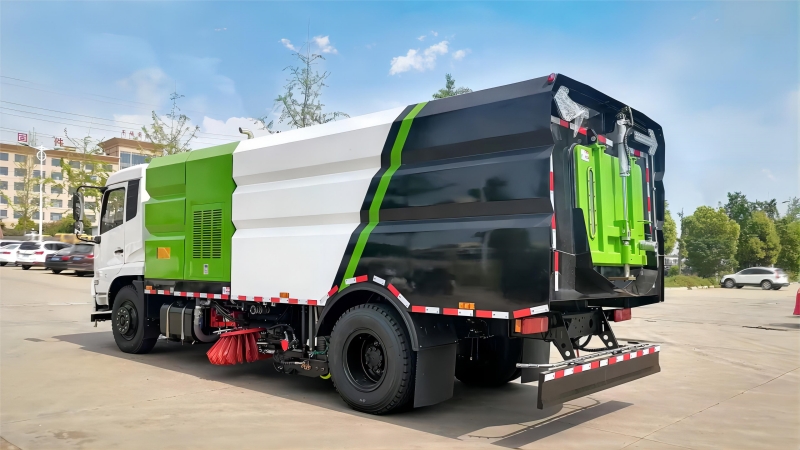

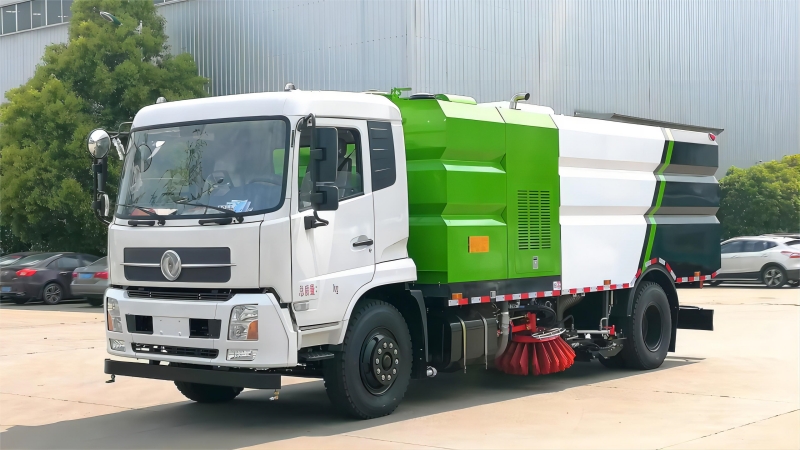

Product Presentation

Product specification

GVW                                                   Driving Type 4x2

Model

CLW

Cab

Tianjin a row and a half deluxe cab(with sleeping berth),hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers

Engine(Hp)

190

Power(Kw)

140

Wheelbase

5000

Front/Rear Suspension

1430/2320

Steering

Power steering

Approach/departure angle

20/15

Wheels & tire

10.00R20

Tire number

6+1

Tank Dimensions(mm)



Cubage (m3)

Water tank 8 ,dust tank 7

RHD or LHD

optional

Overall Dimensions(mm)

8700×2500×3100

Curb weight (Kg)

11100

Engine

Model

B190 33

Horsepower

190

Maximum output Kw

140

Maximum torque N.m

640

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

5.900L

Cummins brand, Euro 3

Driving passenger

2,3

Transmission

8 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10T

Brake System

air brake ,exhaust brake

Color and LOGO

customized

Electric system

24V

Sweeper and washing

Water tank

8m3

Dust tank

7m3

Sweeping width

3.5m

Cleaning efficiency

98%

Unloading angle

45°

Maximum suction particle

120mm

Max cleaning ability

70000 m2/h

Sweeping speed

3-25km/h

Standard configuration

2 sweeping brushes,vacuum tank, water tank with anti-overflow or low water level alarm , German high pressure water pump ,front and rear road flushing system ,garbage tank self cleaning system. auxiliary engine, Siemens control switch, American sensor,hydraulic system and electrical system ,reversing and cleaning state indoor monitor led arrow lamb and 18m high pressure cleaning reel and so on .

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
