GVW                                                Driving Type 4x2

Model

CLW

Cab

Single row, tilted

Engine(Hp)

120

Power(Kw)

88

Wheelbase

3800

Front/Rear Suspension

1180/2050

Steering

Power steering

Approach/departure angle

21/13

Wheels & tire

8.25-16

Tire number

6+1

Tank Dimensions(mm)

/

Cubage (m3)

Water tank 4 ,dust tank 5

RHD or LHD

optional

Overall Dimensions(mm)

7000×2200×2700

Curb weight (Kg)

7000

Engine

Model

CY4102BZQ

Horsepower

120

Maximum output Kw

88

Maximum torque N.m

324

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

3.856L

Chaoyang brand, Euro 2

Driving passenger

2,3

Transmission

5 speed forward and one reverse, manual

Front Axle

2.5T

Rear Axle

4.5T

Brake System

air brake ,exhaust brake

Color and LOGO

customized

Electric system

24V

Sweeper and washing

Water tank

4m3

Dust tank

5m3

Sweeping width

3.2m

Cleaning efficiency

98%

Unloading angle

45°

Maximum suction particle

120mm

Max cleaning ability

70000 m2/h

Sweeping speed

3-25km/h

Standard configuration

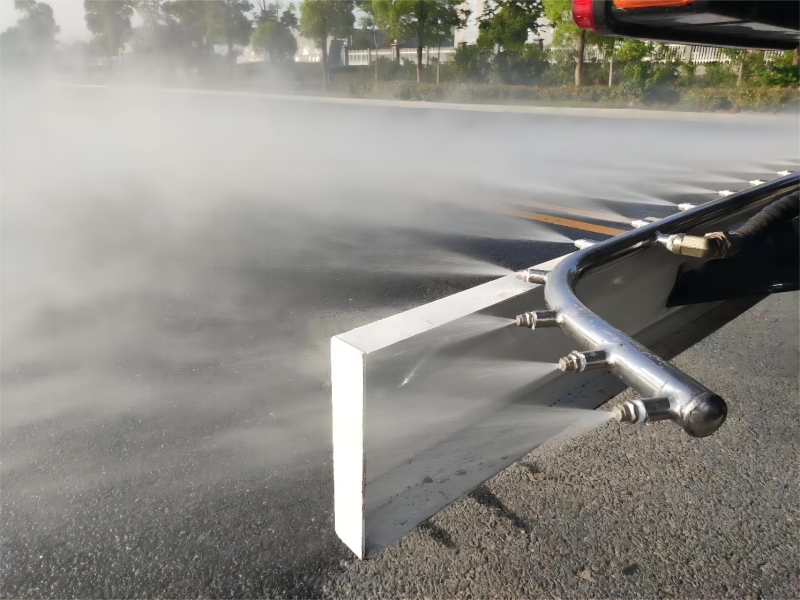

2 sweeping brushes,vacuum tank, water tank with anti-overflow or low water level alarm , German high pressure water pump ,front and rear road flushing system ,garbage tank self cleaning system. auxiliary engine, Siemens control switch, American sensor, hydraulic system and electrical system ,reversing and cleaning state indoor monitor led arrow lamb and 18m high pressure cleaning reel and so on .

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
