GVW                                                   Driving Type 6x4

Model

CLW

Cab

SINOTRUK HW76 Lengthen cab, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner

Engine(Hp)

336

Power(Kw)

247

Wheelbase

4325+1350, 4600+1350

Front/Rear Suspension

1500/1100

Steering

Power steering

Approach/departure angle

16/29

Wheels & tire

295/80R22.5

Tire number

10+1

Garbage bin capacity(m3)

20

RHD or LHD

optional

Overall Dimensions(mm)

8300×2500×3050

Curb weight (Kg)

11070

Engine

Model

WD615.69

Horsepower

336

Maximum output Kw

247

Maximum torque N.m

1350

Type

6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

9.726L

Sinotruk brand, Euro 2

Driving passenger

2

Transmission

HW19710, 10 speed forward and 2 reverse, manual

Front Axle

HF7

Rear Axle

ST16 x2

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

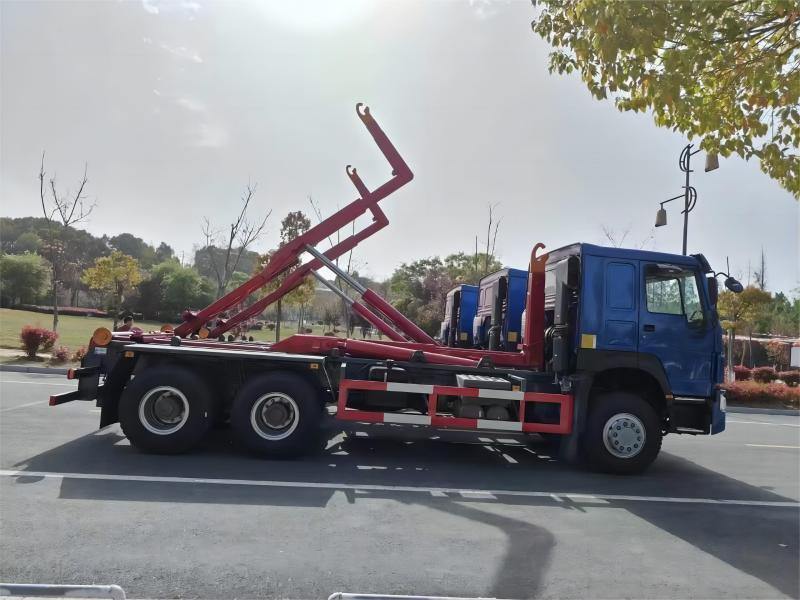

20T telescope hook lift system , sub frame, lock cylinder, multiple valve, operating handle, rear hydraulic legs, remote control operation from cabin, electric control, and etc

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
