GVW                                                   Driving Type 6x4

Model

CLW

Cab

D310 standard flat roof a row and a half deluxe cab(with sleeping berth), air conditioner, electric glass, hydraulic mechanical flip, channel type instrument panel, central lock, allowable 3 passengers

Engine(Hp)

290

Power(Kw)

213

Wheelbase

4350+1350

Front/Rear Suspension

1460/1480

Steering

Power steering

Approach/departure angle

20/21

Wheels & tire

10.00R20

Tire number

10+1

Garbage bin capacity(m3)

18-20

RHD or LHD

optional

Overall Dimensions(mm)

8600×2500×3300

Curb weight (Kg)

11300

Engine

Model

WP10.290E32

Horsepower

290

Maximum output Kw

213

Maximum torque N.m

1160

Type

6 cylinders, in-line,4-stroke.turbo inter-cooling, diesel engine

Displacement

9.726L

Weichai brand, Euro 3

Driving passenger

2,3

Transmission

FAST 10 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10TX2

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

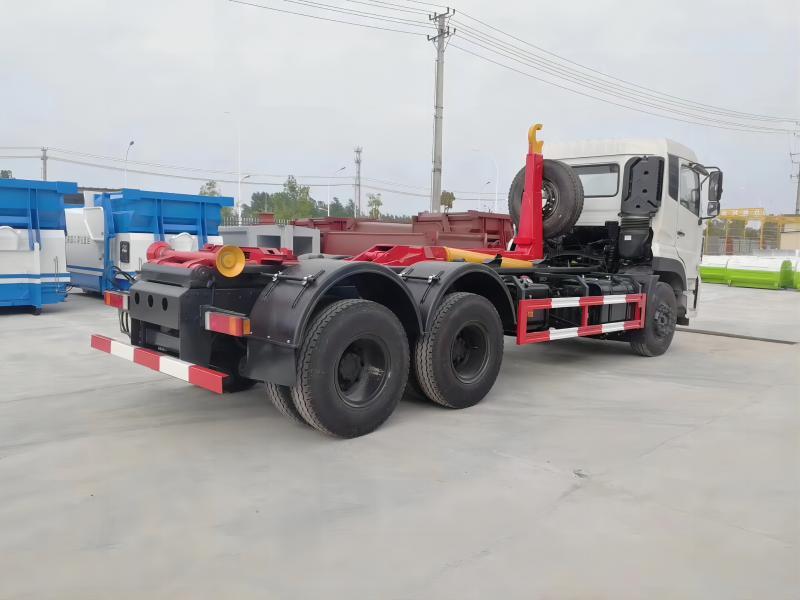

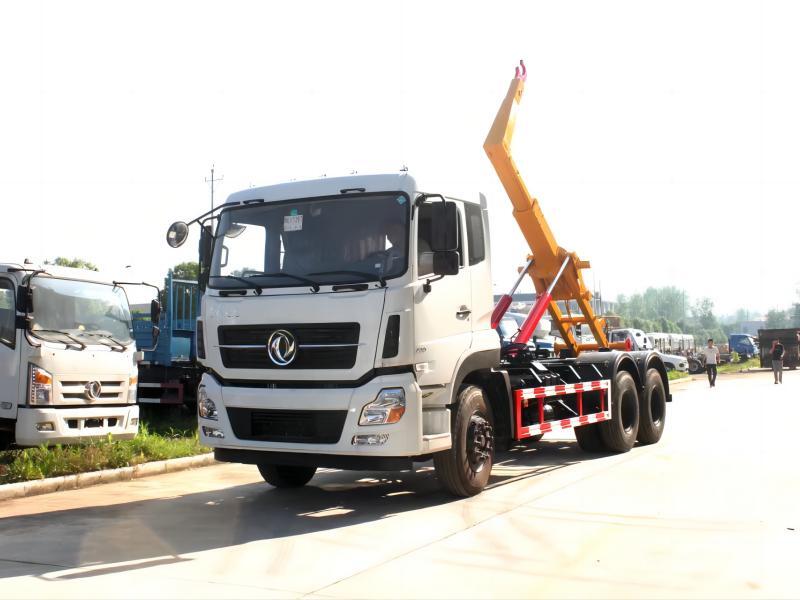

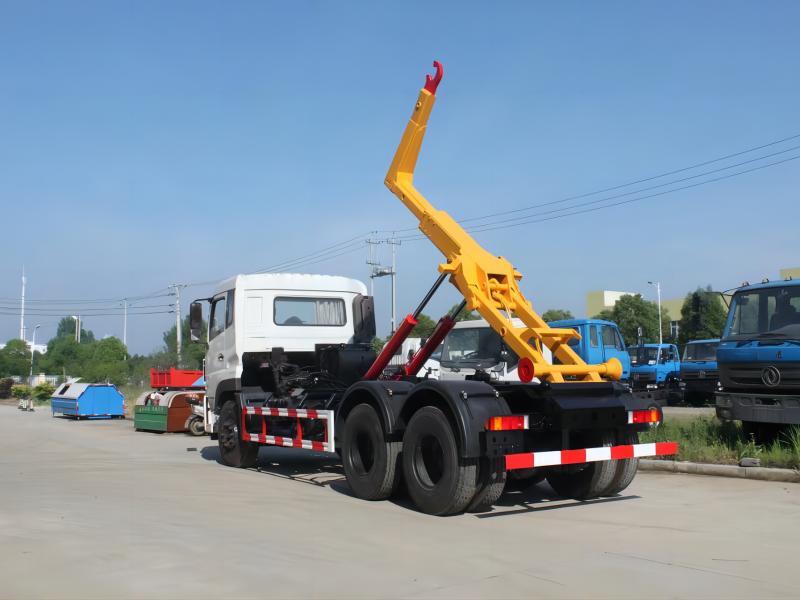

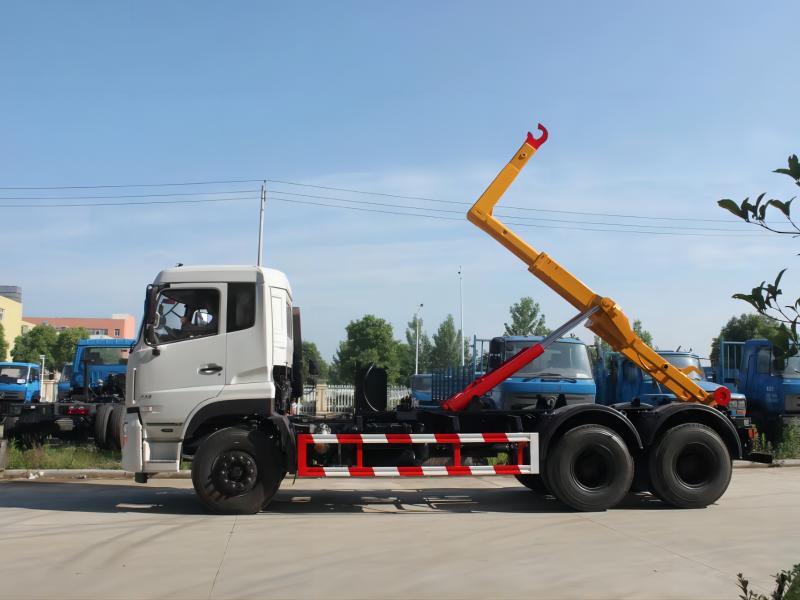

20T telescope hook lift system , sub frame, lock cylinder, multiple valve, operating handle, one garbage container,rear hydraulic legs, remote control operation from cabin, electric control, and etc

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
