GVW                                                  Driving Type 6x4

Model

CLW

Cab

Tianjin a row and a half deluxe cab(with sleeping berth),hydraulic mechanical flip, channel type instrument panel, power window,air conditioner, allowable 3 passengers

Engine(Hp)

210

Power(Kw)

155

Wheelbase

4350+1300

Front/Rear Suspension

1430/1280

Steering

Power steering

Approach/departure angle

28/22

Wheels & tire

10.00R20

Tire number

10+1

Garbage bin capacity(m3)

16

RHD or LHD

optional

Overall Dimensions(mm)

8400×2550×3150

Curb weight (Kg)

11200

Engine

Model

B210 33

Horsepower

210

Maximum output Kw

155

Maximum torque N.m

700

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

5.900L

Cummins brand, Euro 3

Driving passenger

2,3

Transmission

9 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10T x2

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

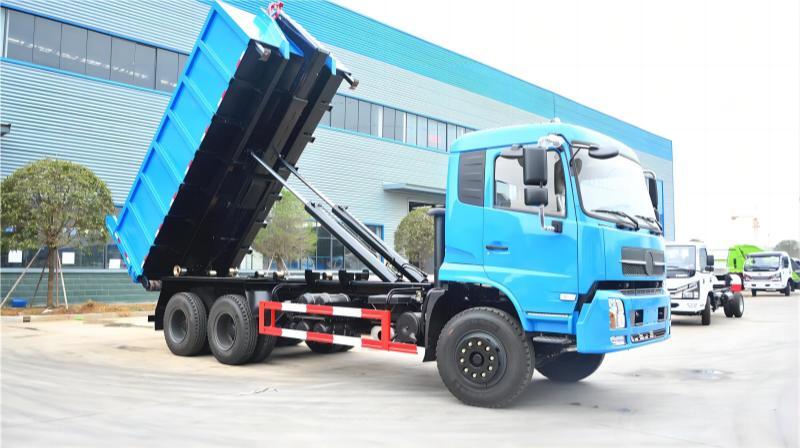

Hook lift system , sub frame, lock cylinder, multiple valve, operating handle, one garbage container.

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
