GVW                                                   Driving Type 4x2

Model

CLW

Cab

Single cab, tilted

Engine(Hp)

120

Power(Kw)

88

Wheelbase

3800

Front/Rear Suspension

1180/820

Steering

Power steering

Approach/departure angle

22/13

Wheels & tire

7.5R16

Tire number

6+1

Garbage bin capacity(m3)

7

RHD or LHD

optional

Overall Dimensions(mm)

5900×2300×2400

Curb weight (Kg)

3750

Engine

Model

CY4102BZQ

Horsepower

120

Maximum output Kw

88

Maximum torque N.m

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

3,856L

Chaoyang brand, Euro 2

Driving passenger

2,3

Transmission

5 speed forward and one reverse, manual

Front Axle

2.5T

Rear Axle

4.5T

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

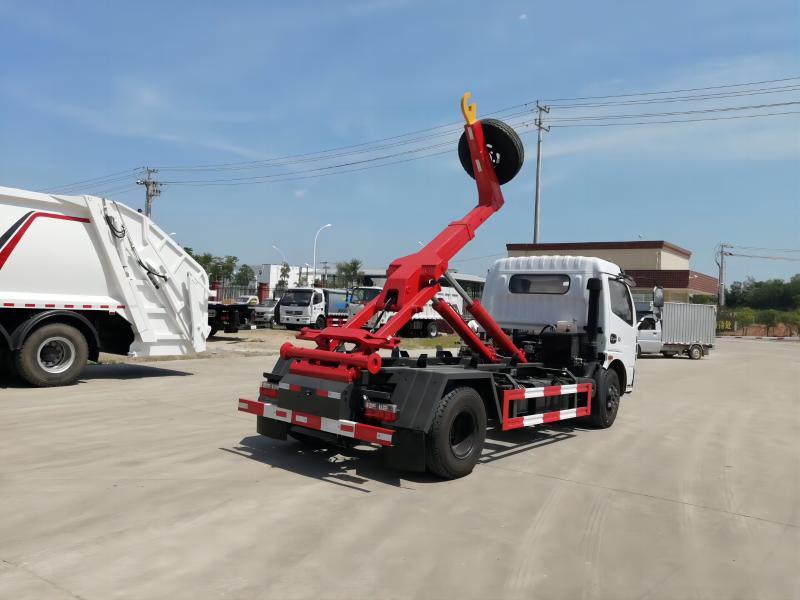

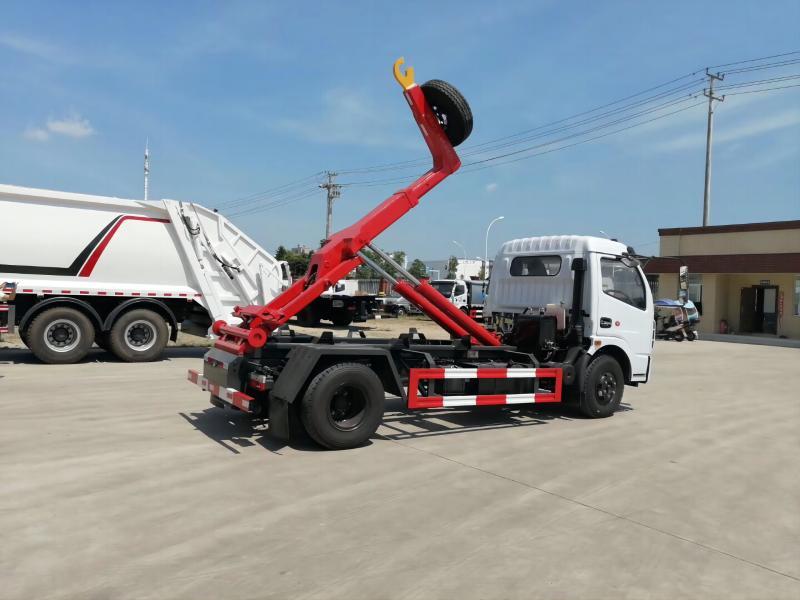

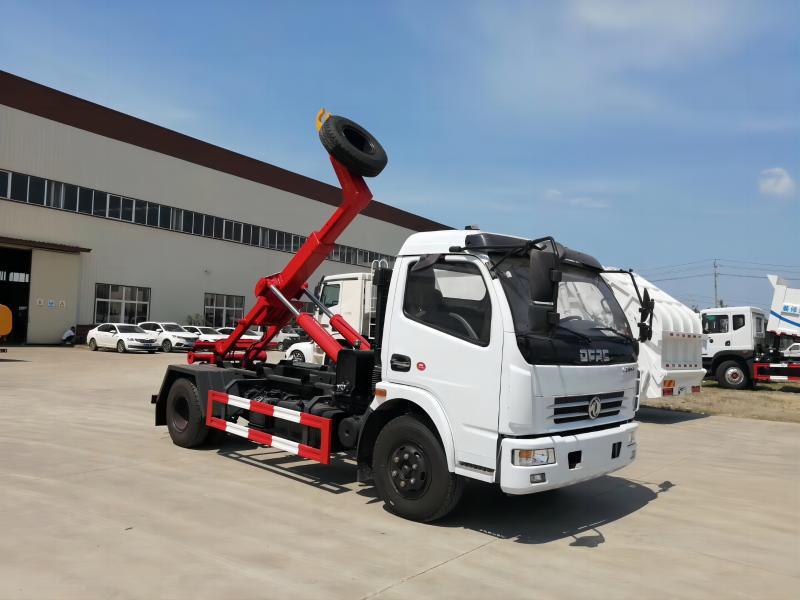

Hook lift system , sub frame, lock cylinder, multiple valve, operating handle

Delivery date

Within 20 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
