GVW                                              Driving Type 6x4

Model

CLW

Cab

SHACMAN F3000 four-point hydraulic suspension cab,electric automatic constant temperature air conditioner,power window,ordinary air filter,central lock,hydraulic major seat,tilt,metal bumper

Engine(Hp)

340

Power(Kw)

250

Wheelbase

4375+1400,4575+1400

Front/Rear Suspension

1525/2940

Steering

Power steering

Approach/departure angle

16/11

Wheels & tire

12.00R22.5

Tire number

10+1

Tank Dimensions(mm)

/

Cubage (m3)

20

Steel thickness of tank(mm)

5

RHD or LHD

optional

Overall Dimensions(mm)

10400×2500×3360

Curb weight (Kg)

10300

Engine

Model

WP10.340E22

Horsepower

340

Maximum output Kw

250

Maximum torque N.m

1350

Type

6cylinders, in-line,4-stroke,water-cooled, diesel engine

Displacement

9.726L

Weichai engine brand, Euro 2

Driving passenger

2.3

Transmission

FAST 10 forwards,2 reverse ,manual

Front Axle

7.5T

Rear Axle

13TX2

Brake System

Air brake

Exhaust brake

Color and LOGO

customized

Electric system

24V

Tank material

Carbon steel

Sprinkling width

14m each side

Suction height

7m

Standard configuration

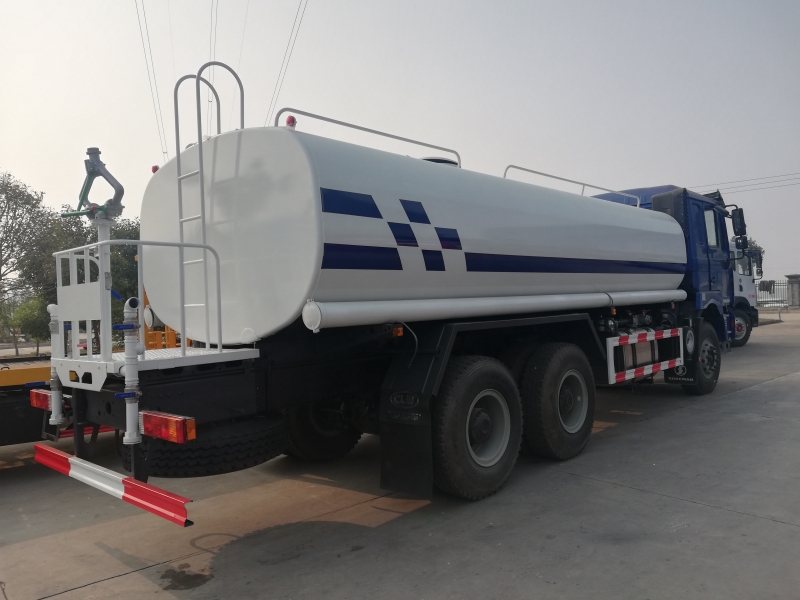

carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
