GVW                                                  Driving Type 4x2

Model

CLW

Cab

Single cab, tilted

Engine(Hp)

47

Power(Kw)

34.5

Wheelbase

2600

Front/Rear Suspension

1115/830

Steering

Power steering

Approach/departure angle

18/31

Wheels & tire

6.0 -16

Tire number

6+1

Garbage bin capacity(m3)

3

RHD or LHD

LHD

Overall Dimensions(mm)

4600×1800×2100

Curb weight (Kg)

1600

Engine

Model

N485QA

Horsepower

47

Maximum output Kw

34.5

Maximum torque N.m

123

Type

4 cylinders, in-line,4-stroke,diesel engine

Displacement

2156ml

Quanchai brand, Euro 2

Driving passenger

2

Transmission

5 speed forward and one reverse, manual

Front Axle

1.5T

Rear Axle

3.5T

Brake System

Oil brake

Color and LOGO

customized

Electric system

24V

Standard configuration

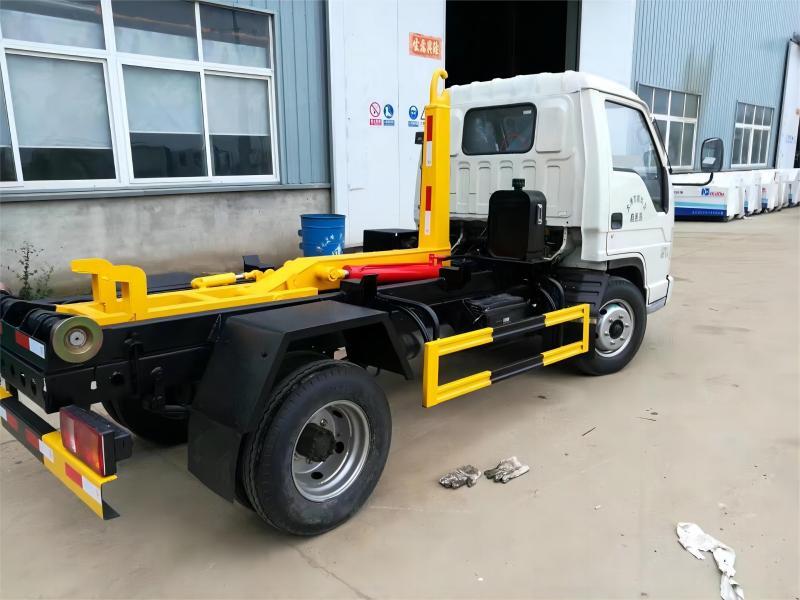

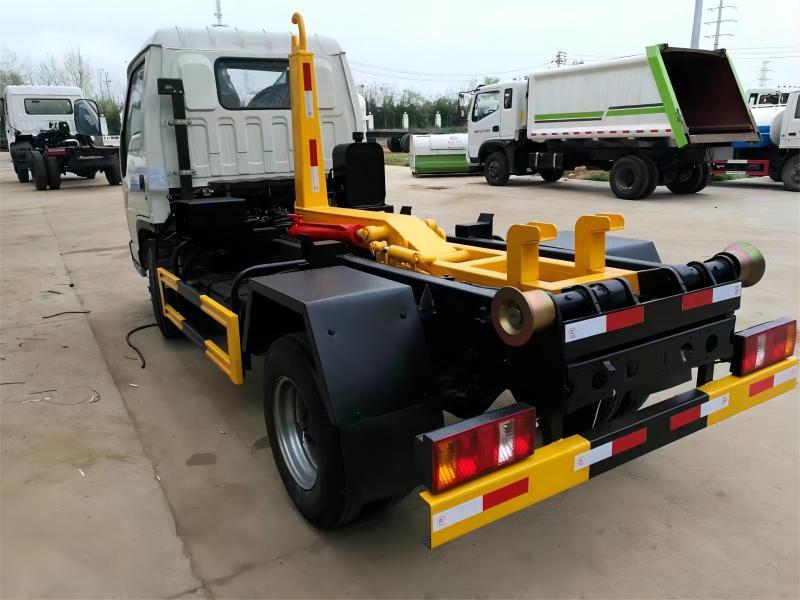

Hook lift system , sub frame, lock cylinder, multiple valve, operating handle, one garbage container.

Delivery date

Within 20 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
