GVW                                                    Driving Type 6x4

Model

CLW

Cab

SINOTRUK HW76 Lengthen cab, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner

Engine(Hp)

340

Power(Kw)

250

Wheelbase

4325+1350

Front/Rear Suspension

1500/2400

Steering

Power steering

Approach/departure angle

16/12

Wheels & tire

295/80R22.5

Tire number

10+1

Tank Dimensions(mm)

 /

Cubage (m3)

18-20

RHD or LHD

optional

Overall Dimensions(mm)

9600x2500x3550

Curb weight (Kg)

10000

Engine

Model

WP10.340E22

Horsepower

340

Maximum output Kw

250

Maximum torque N.m

1350

Type

6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

9.726L

Weichai brand, Euro 2

Driving passenger

2

Transmission

HW19710,10 forwards,2 reverse

Front Axle

HF7

Rear Axle

ST16x2

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

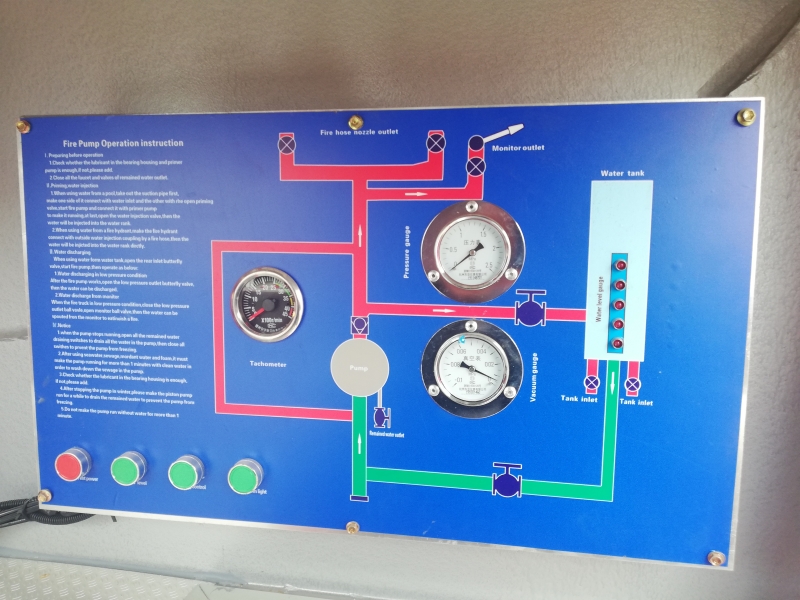

Fire equipment part

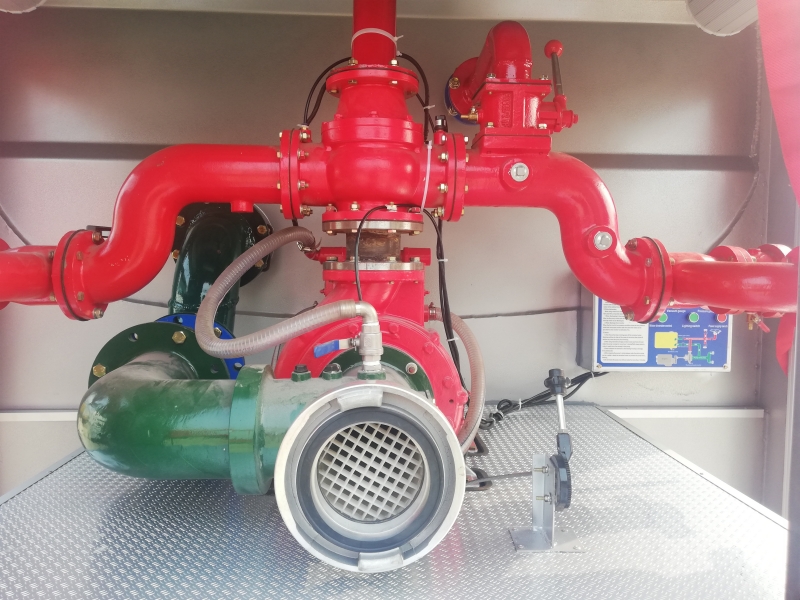

Fire pump

CB10/30 , rated pressure 1.0MPa, flow30L/s

Fire gun

PS30 , flow 30L/s , jet distance ≥55m

Standard configuration

fire pump, fire gun,fire power take off, sliding gate, row type lights, common tools ,rear climbing ladder, water tank,road sprinkler system optional

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
