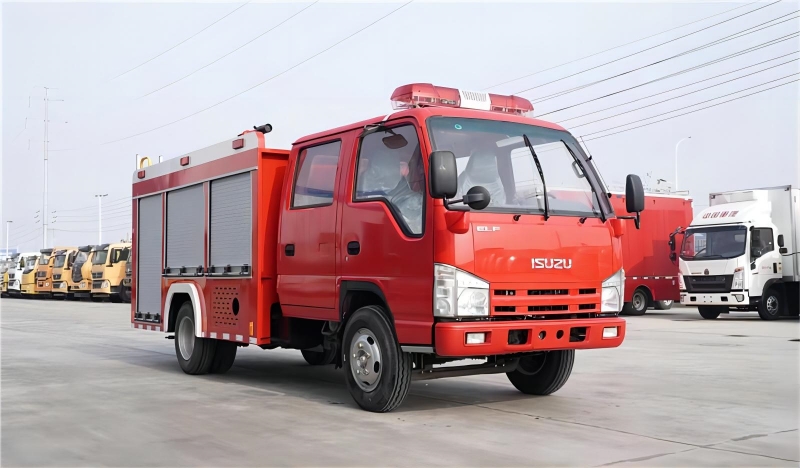

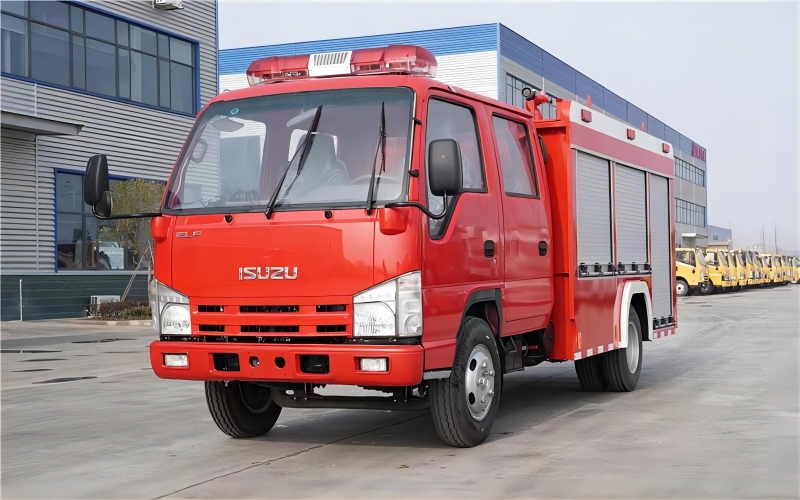

GVW                                               Driving Type 4x2

Model

CLW

Cab

Isuzu 100P double row, air con ,allowable 2+3 passengers

Engine(Hp)

98

Power(Kw)

72

Wheelbase

3360

Front/Rear Suspension

1015/1880

Steering

Power steering

Approach/departure angle

24/14

Wheels & tire

7.0R16

Tire number

6+1

Tank Dimensions(mm)

1765×1000×1190

Cubage (m3)

2

RHD or LHD

LHD

Overall Dimensions(mm)

6350×2000×2750

Curb weight (Kg)

4170

Engine

Model

4KH1CN5LS

Horsepower

98

Maximum output Kw

72

Maximum torque N.m

220

Type

4 cylinders, in-line,4-stroke, diesel engine

Displacement

2.999L

Isuzu brand, Euro 5

Driving passenger

2+3

Transmission

Isuzu MSB 5 speed forward and one reverse, manual

Front Axle

2T

Rear Axle

4T

Brake System

oil brake

Color and LOGO

customized

Electric system

24V

Fire equipment part

Fire pump

CB10/20 , rated pressure 1.0MPa, flow 20L/s

Fire gun

PS20 , flow 20L/s , jet distance ≥45m

Standard configuration

national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun,fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank.

Optional configuration

foam type, dry powder type, stainless tank, other requirements.

Delivery date

Within 50 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
