GVW                                                     Driving Type 6x4

Model

CLW

Cab

Tianjin one and half row deluxe cab(with sleeping berth),hydraulic mechanical flip, channel type instrument panel, power window,air conditioner, allowable 3 passengers

Engine(Hp)

210

Power(Kw)

155

Wheelbase

4350+1300

Front/Rear Suspension

1430/2840

Steering

Power steering

Approach/departure angle

32/19

Wheels & tire

10.00-20

Tire number

10+1

Tank Dimensions(mm)

/

Cubage (m3)

16

RHD or LHD

optional

Overall Dimensions(mm)

9950x2500x3350

Curb weight (Kg)

10600

Engine

Model

B210 33

Horsepower

210

Maximum output Kw

155

Maximum torque N.m

700

Type

6 cylinders, in-line,4-stroke,turbo inter-cooling, diesel engine

Displacement

5.900L

Cummins brand, Euro 3

Driving passenger

2,3

Transmission

FAST 8 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10Tx2

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

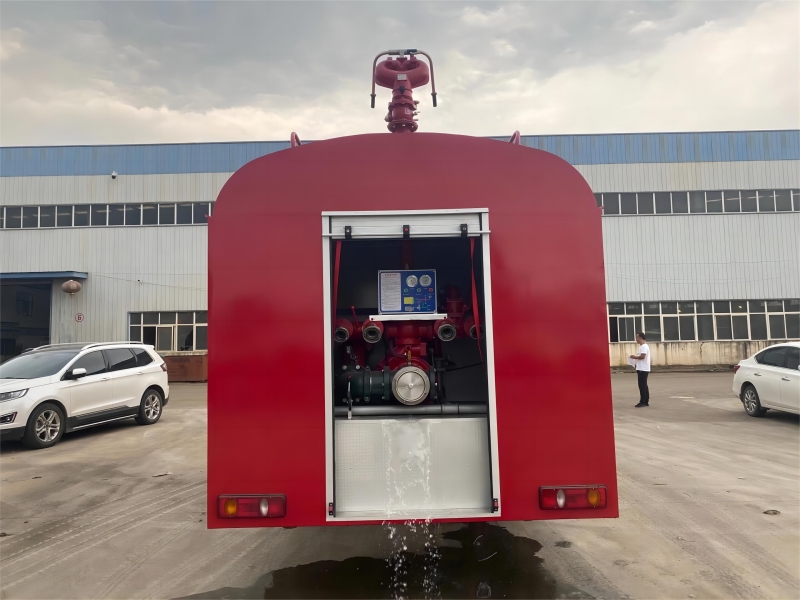

Fire equipment part

Fire pump

CB10/30 , rated pressure 1.0MPa, flow30L/s

Fire gun

PS30 , flow 30L/s , jet distance ≥55m

Standard configuration

fire pump, fire gun,fire power take off, sliding gate, row type lights, common tools ,rear climbing ladder, water tank,road sprinkler system optional

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
