GVW                                                   Driving Type 4x2

Model

CLW

Cab

One row cab, tilted

Engine(Hp)

82

Power(Kw)

60

Wheelbase

3300

Front/Rear Suspension

1032/1952

Steering

Power steering

Approach/departure angle

16/12

Wheels & tire

7.0R16

Tire number

6+1

Tank capacity(m3)

3-4

RHD or LHD

optional

Overall Dimensions(mm)

6300×2100×2400

Curb weight (Kg)

5000

Engine

Model

CY4100Q

Horsepower

82

Maximum output Kw

60

Maximum torque N.m

Type

4cylinders, in-line,4-stroke,water-cooled, diesel engine

Displacement

3700ml

Chaoyang brand, Euro 2

Driving passenger

2,3

Transmission

5 speed forward and one reverse, manual

Front Axle

2T

Rear Axle

4T

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Tank material

Stainless steel

Standard configuration

Intelligent configuration(Import configuration optional)

Equipment

Bitumen pump

QGB680, 680L/min

Asphalt pump hydraulic drive motor

05-110-BD31

Hydraulic pump

CBQ550-L

Proportional valve

Taiwan, EFBG-03-160-HF

Directional and relief valves

Shanxi ,Yuci brand

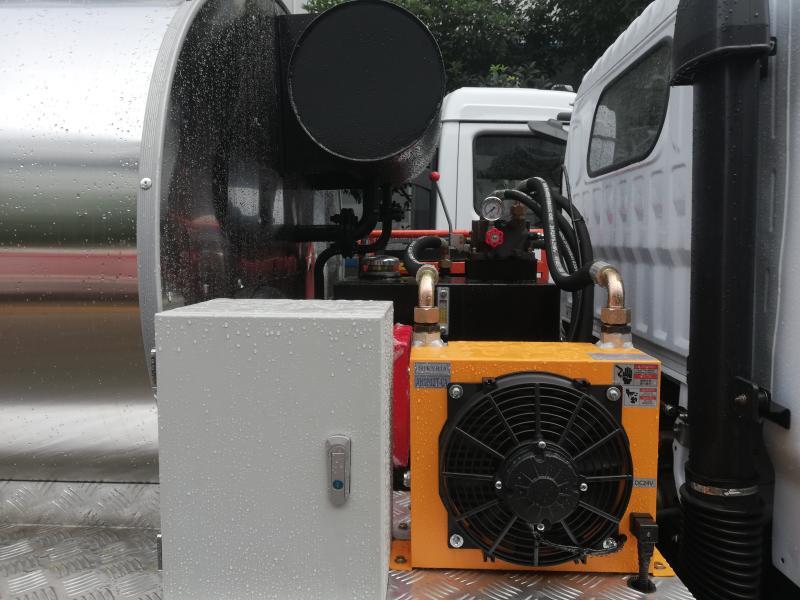

Radiator

Risheng brand

Control system

German Siemens brand, computer intelligent control

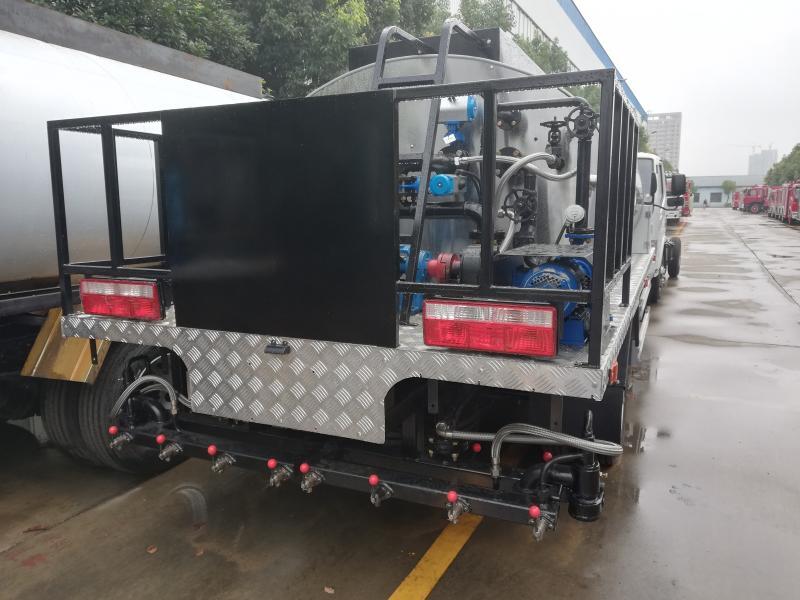

Intelligent bitumen nozzle number

30

Heating method

Heat transfer oil is automatically heated, burner G10 Italian brand

Heat transfer oil pump

China brand , gasoline engine 6KW

Spread width

4m ,0.25-2.5L/m²

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
