GVW                                                  Driving Type 4x2

Model

CLW

Cab

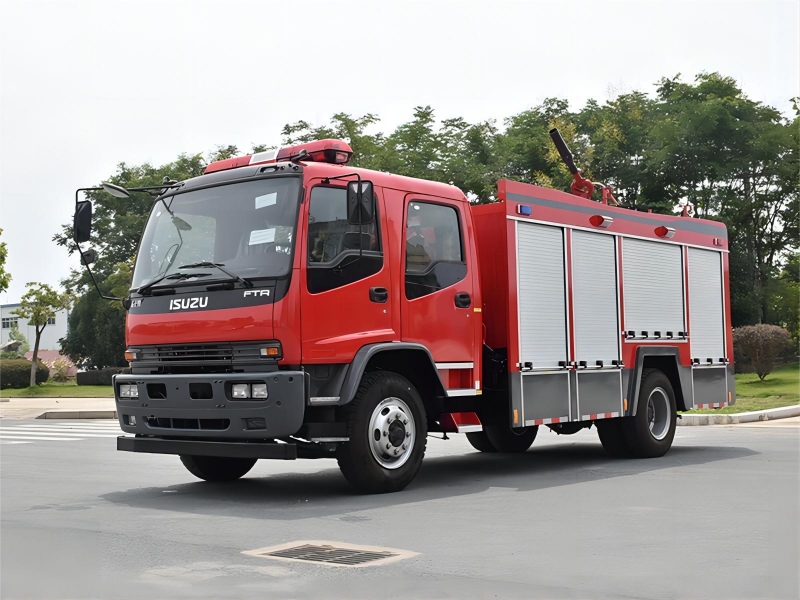

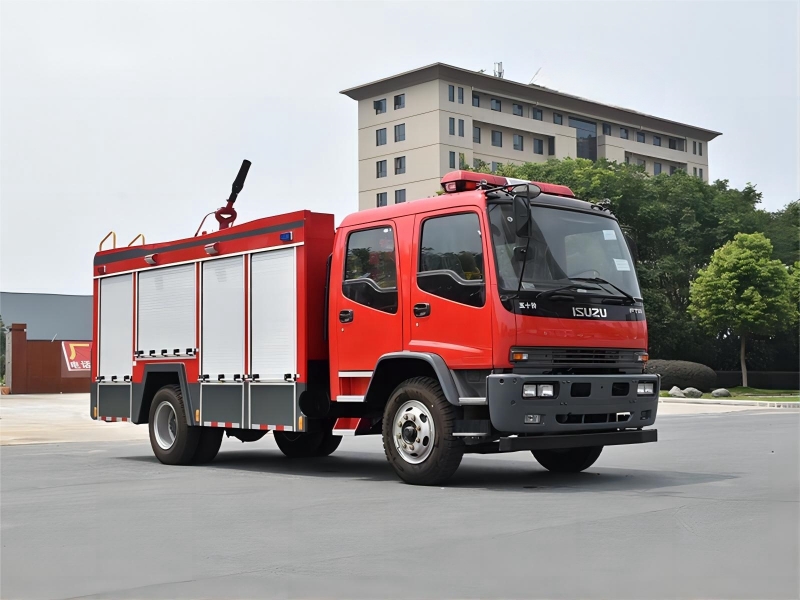

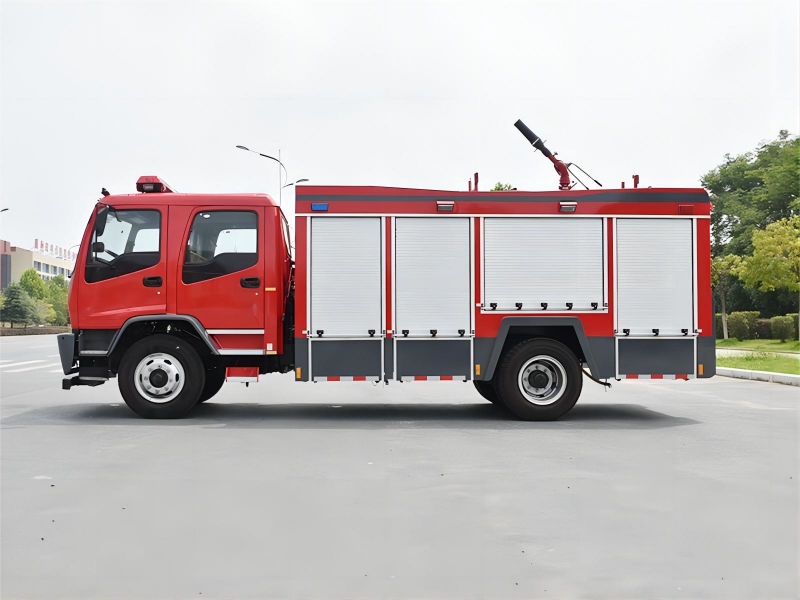

Isuzu FTR double row, air con ,power window,central lock,allowable 3+3 passengers

Engine(Hp)

205

Power(Kw)

151

Wheelbase

4500

Front/Rear Suspension

1335/2090

Steering

Power steering

Approach/departure angle

15/13

Wheels & tire

10.00R20

Tire number

6+1

Tank Dimensions(mm)

/

Cubage (m3)

6

RHD or LHD

LHD

Overall Dimensions(mm)

7925×2500×3450

Curb weight (Kg)

8650

Engine

Model

4HK1-TC50

Horsepower

205

Maximum output Kw

151

Maximum torque N.m

650

Type

4 cylinders, in-line,4-stroke, diesel engine

Displacement

5.193L

Isuzu brand, Euro 5

Driving passenger

3+3

Transmission

Isuzu MLD 6 speed forward and one reverse, manual

Front Axle

6.3T

Rear Axle

13T

Brake System

Air brake

Exhaust brake

Color and LOGO

customized

Electric system

24V

Fire equipment part

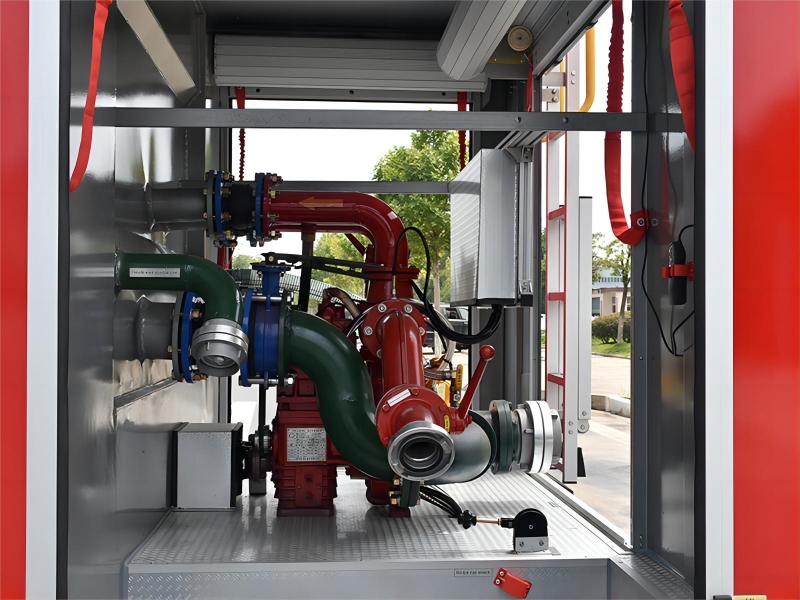

Fire pump

CB10/40 , rated pressure 1.0MPa, flow 40L/s

Fire gun

PS40 , flow 40L/s , jet distance ≥60m

Standard configuration

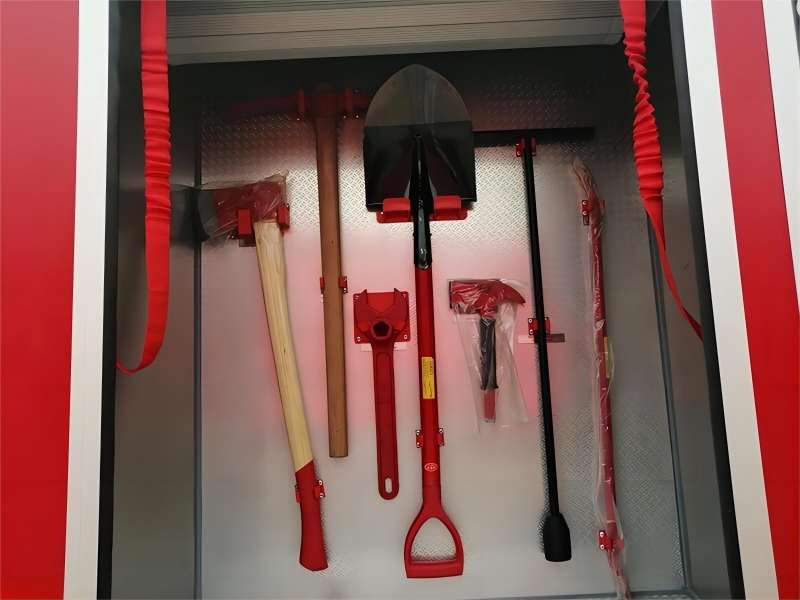

national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun,fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank.

Optional configuration

foam type, dry powder type, stainless tank, other requirements.

Delivery date

Within 50 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
