GVW                                                 Driving Type 4x2

Model

CLW

Cab

a row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Engine(Hp)

170

Power(Kw)

125

Wheelbase

3950

Front/Rear Suspension

1250/2480

Steering

Power steering

Approach/departure angle

30/14

Wheels & tire

9.00R20

Tire number

6+1

Compactor capacity(m3)

10

RHD or LHD

optional

Overall Dimensions(mm)

7680×2470×3050

Curb weight (Kg)

8255

Engine

Model

B170 33

Horsepower

170

Maximum output Kw

125

Maximum torque N.m

560

Type

6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

5.9L

Cummins brand, Euro 3

Driving passenger

3

Transmission

8 speed forward and one reverse, manual

Front Axle

3.6T

Rear Axle

9T

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

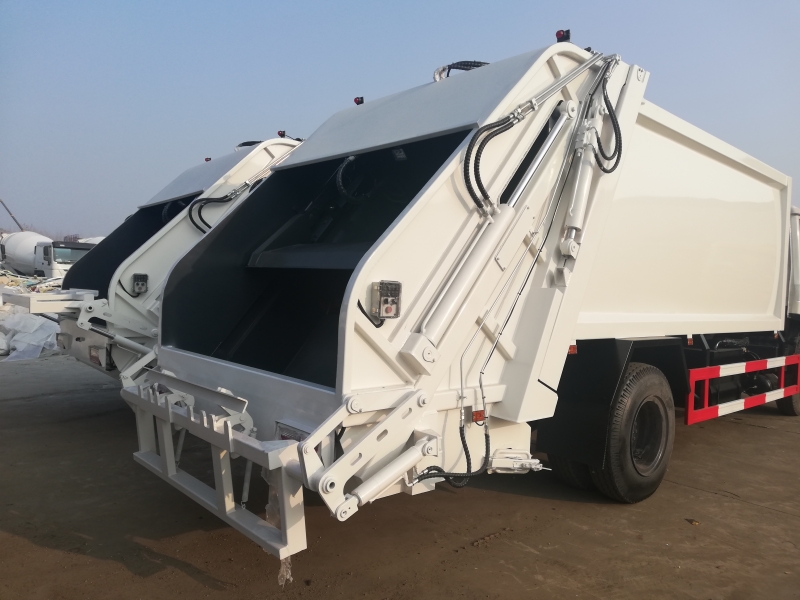

Compactor body, sub frame, rear lifting part, loading bunker, pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control ,PLC control.

Selective equipment

Rear side arm swing type instrument

compactor

capacity

10m3

Loading cycle

15-30s

Unloading cycle

20-30s

Compressed proportion

1:3/1:2

Garbage bin turning over instrument

available

Different instrument selective

Delivery date

Within 20 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
