GVW                                                  Driving Type 4x2

Model

CLW

Cab

Tianjin a row and a half deluxe cab(with sleeping berth),hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers

Engine(Hp)

190

Power(Kw)

140

Wheelbase

4700

Front/Rear Suspension

1430/2570

Steering

Power steering

Approach/departure angle

20/11

Wheels & tire

10.00R20

Tire number

6+1

Body Dimensions(mm)

6100×2350×2300

Loading capacity(kg)

10000

RHD or LHD

optional

Overall Dimensions(mm)

8700×2550×3850

Curb weight (Kg)

6800

Engine

Model

B190 33

Horsepower

190

Maximum output Kw

140

Maximum torque N.m

640

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

5.900L

Cummins brand, Euro 3

Driving passenger

2,3

Transmission

8 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10T

Brake System

air brake  ,exhaust brake

Color and LOGO

customized

Electric system

24V

Refrigerator unit

-5°or -15°or -18°selective

Standard configuration

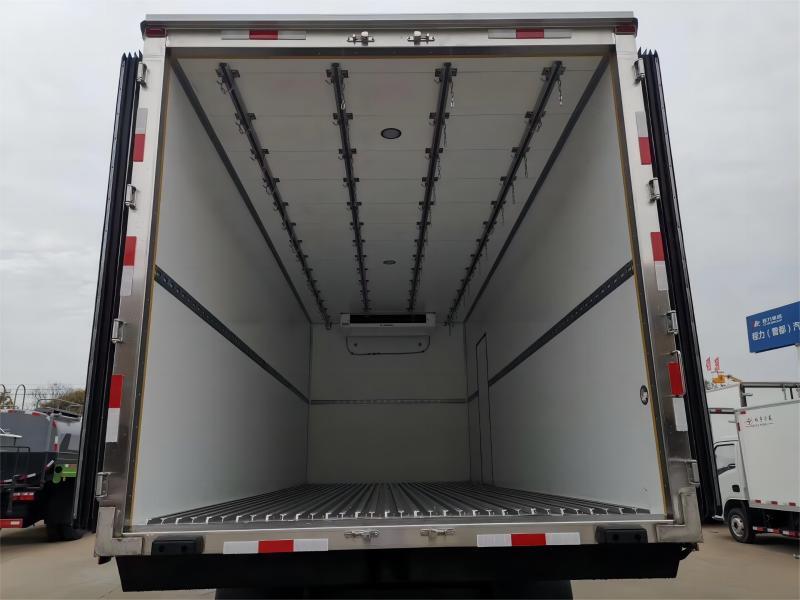

van body(inner glass steel, outer glass steel,8cm polyurethane foam insulation),stainless steel locks, stainless steel door frame, with overhead light and anti collision device, domestic refrigeration unit

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
