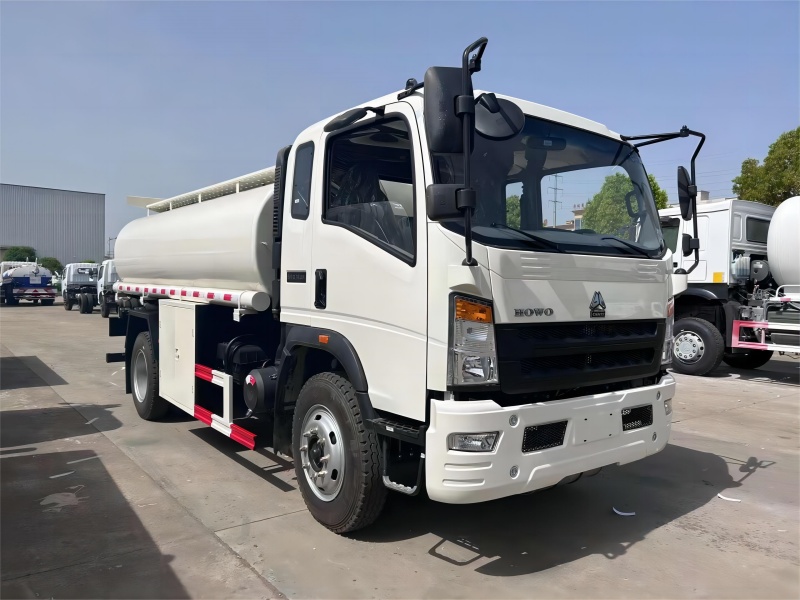

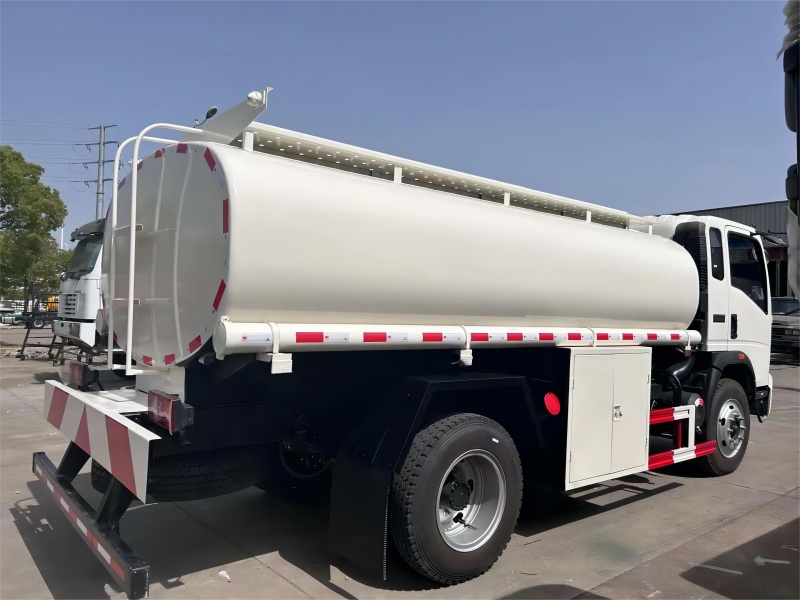

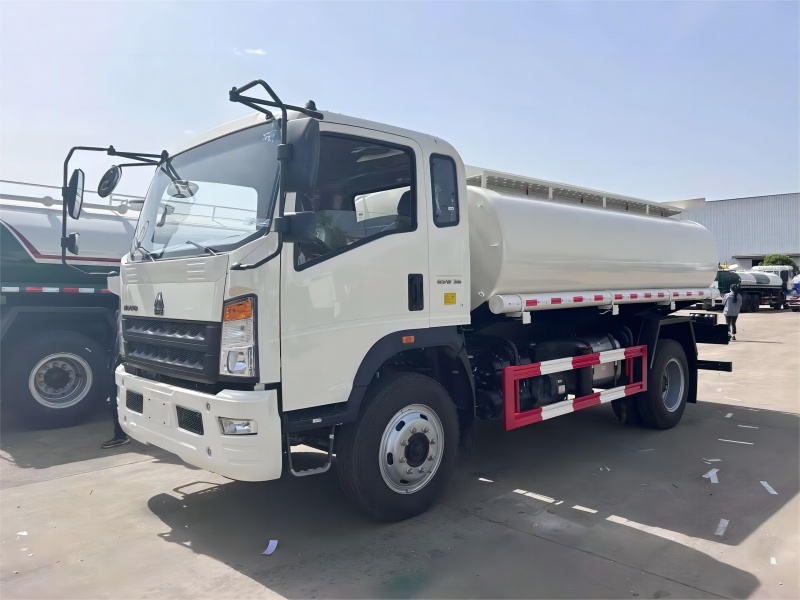

Howo 8m³ fuel tank truck

  • Model brandCLW
  • Chassis brandHowo
  • Capacity8m³
  •   Sales manager: Mike Yin
  •   Phone: +86 13135737018
  •   Email: mikeyin1990@hotmail.com
  • Whatsapp online:
  • Whatsapp qr code

Product Presentation

Product specification

GVW                                                Driving Type 4x2

Model

CLW

Cab

Howo light duty L3W cab ,one and half row cab, tilted

Engine(Hp)

180

Power(Kw)

132

Wheelbase

3800

Front/Rear Suspension

1240/1955

Steering

Power steering

Approach/departure angle

17/14

Wheels & tire

8.25R20

Tire number

6+1

Tank Dimensions(mm)



Cubage (m3)

8

Steel thickness of tank(mm)

4

RHD or LHD

LHD

Overall Dimensions(mm)

7000×2400×2850

Curb weight (Kg)

5560

Engine

Model

MC05.18-40

Horsepower

180

Maximum output Kw

132

Maximum torque N.m

700

Type

4 cylinders, in-line,4-stroke ,turbo inter-cooling, diesel engine

Displacement

4.58L

SINOTRUK brand, Euro 4

Driving passenger

2,3

Transmission

HW90510C 10 speed forward and 2 reverse, manual

Front Axle

3.2T

Rear Axle

8T

Brake System

air brake exhaust brake

Color and LOGO

customized

Electric system

24V

Tank material

Carbon steel, stainless steel, aluminum, etc. alloy, etc.

Standard configuration

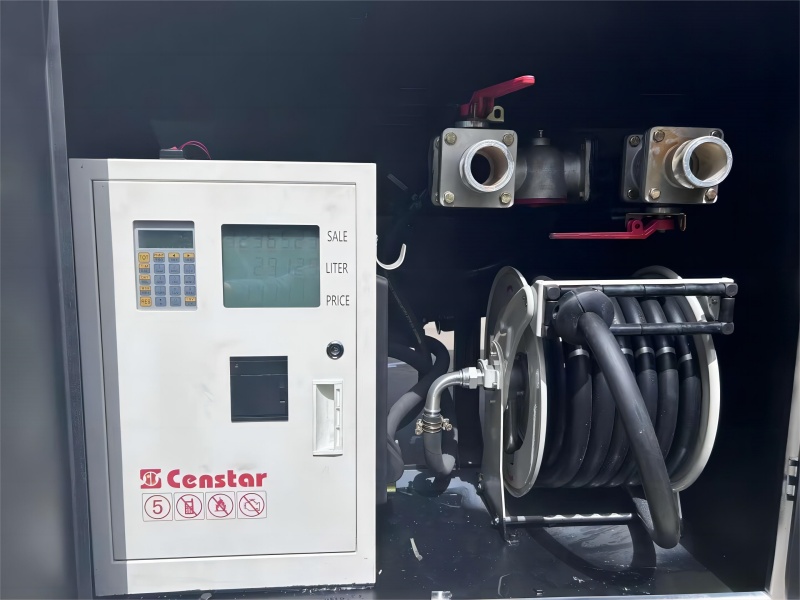

oil pump, flow valves, tool box, manhole, climbing ladder, fire extinguisher, oil hose.

Optional configuration

 flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system, divided into several compartments.

Delivery date

Within 60 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

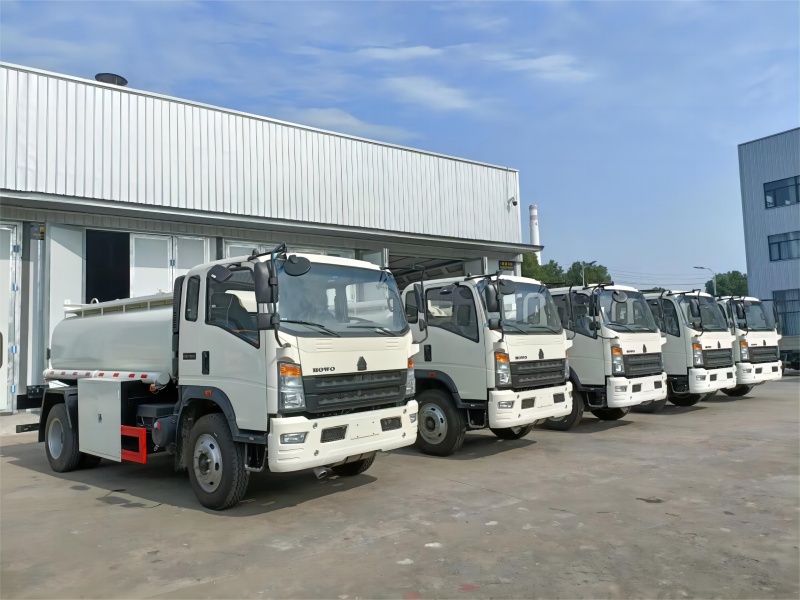

Factory photos
