GVW                                                  Driving Type 4x2

Model

CLW

Cab

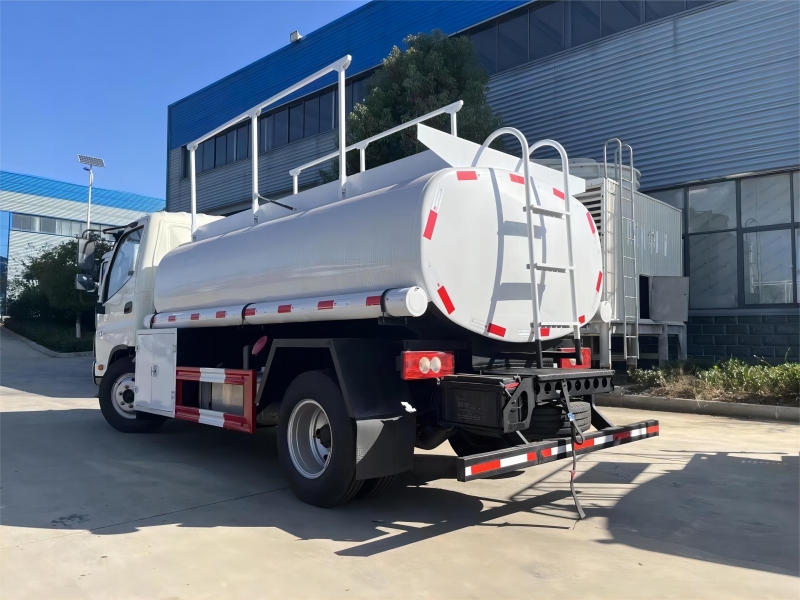

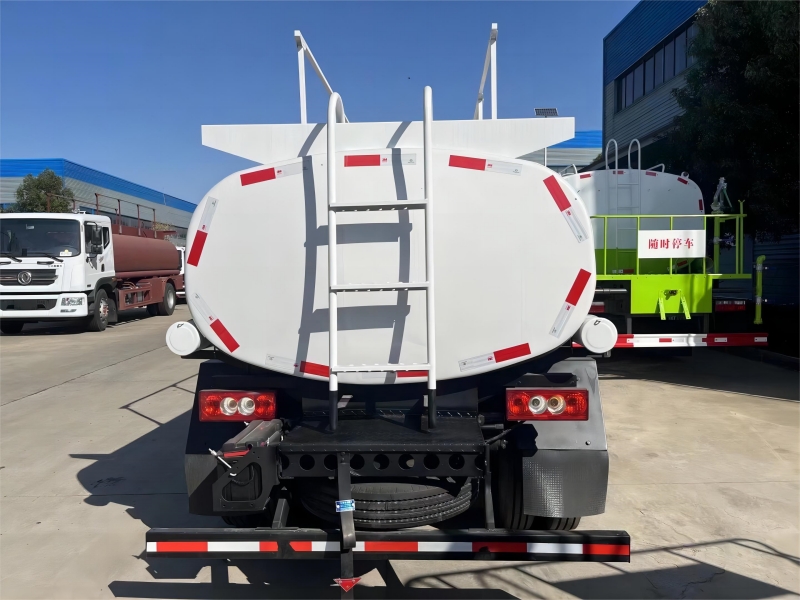

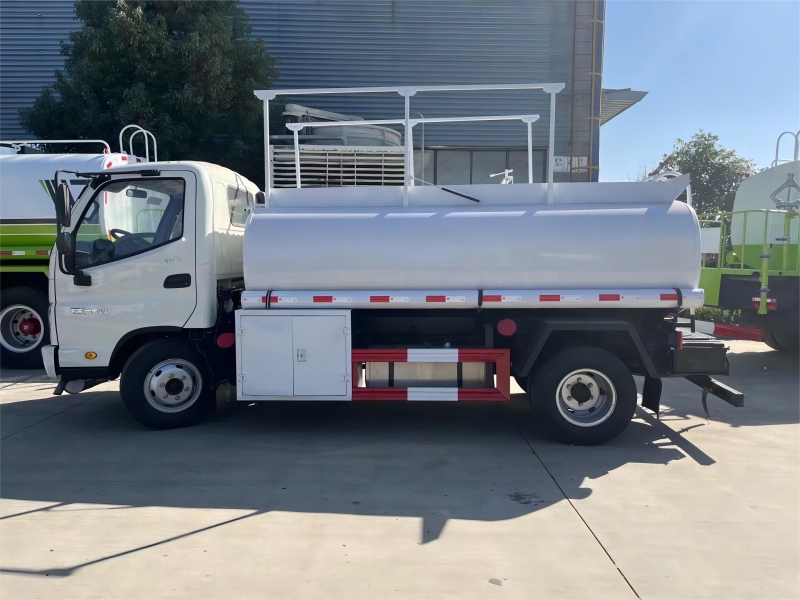

Foton Aumark light duty cab ,one row cab, tilted

Engine(Hp)

130

Power(Kw)

96

Wheelbase

3360

Front/Rear Suspension

1120/1510(mm)

Steering

Power steering

Approach/departure angle

20/17

Wheels & tire

7.5R16

Tire number

6+1

Tank Dimensions(mm)

4000x1800x1250

Cubage (m3)

5

Steel thickness of tank(mm)

4

RHD or LHD

LHD

Overall Dimensions(mm)

5995×2100×2500

Curb weight (Kg)

4000

Engine

Model

YC4D130-33

Horsepower

130

Maximum output Kw

96

Maximum torque N.m

420

Type

4 cylinders, in-line,4-stroke, diesel engine

Displacement

4.214L

Yuchai brand, Euro 3

Driving passenger

2

Transmission

6 speed forward and one reverse, manual

Front Axle

2.2T

Rear Axle

5.5T

Brake System

air brake

Color and LOGO

customized

Electric system

24V

Tank material

Carbon steel, stainless steel, aluminum, etc. alloy, etc.

Standard configuration

oil pump,flow valves, tool box, manhole, climbing ladder, fire extinguisher, oil hose.

Optional configuration

flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system, divided into several compartments.

Delivery date

Within 40 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
