GVW                                                  Driving Type 4x2

Model

CLW

Cab

Tianjin a row and a half deluxe cab(with sleeping berth),hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers

Engine(Hp)

190

Power(Kw)

140

Wheelbase

4700

Front/Rear Suspension

1440/3000

Steering

Power steering

Approach/departure angle

20/10

Wheels & tire

10.00R20

Tire number

6+1

Loading capacity(kg)

8000

Plate dimension(mm)

7000x2500

RHD or LHD

optional

Overall Dimensions(mm)

9200×2500×3000

Curb weight (Kg)

7340

Engine

Model

B190 33

Horsepower

190

Maximum output Kw

140

Maximum torque N.m

640

Type

6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

5.900L

Cummins brand, Euro 3

Driving passenger

2,3

Transmission

8 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10T

Brake System

air brake  ,exhaust brake

Color and LOGO

customized

Electric system

24V

Major parameter

Winch capacity

8000kg

Lift capacity

8000kg

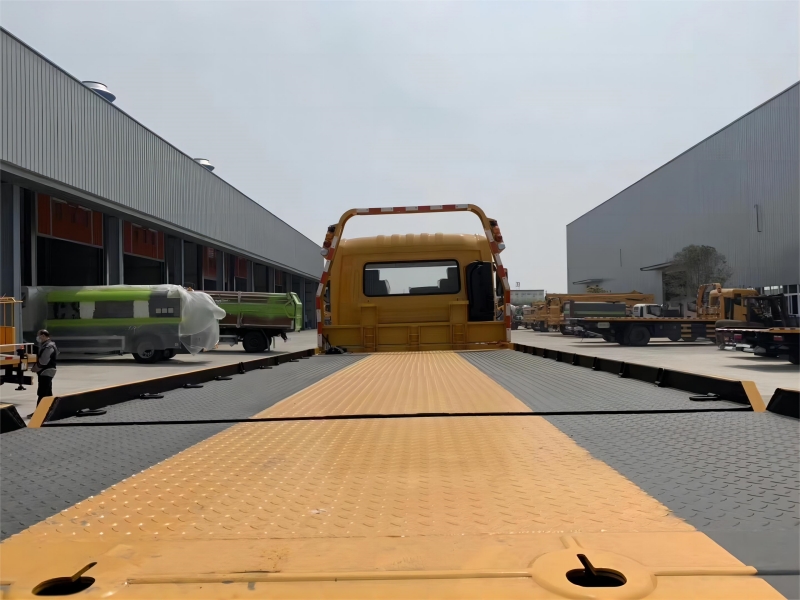

Platform

7x2.5m

Steel wire rope

25m

Standard configuration

 2 units of towing wheel, 1 unit of  8ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp.

Optional configuration

Flexible tail plate

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
