GVW                                                  Driving Type 4x2

Model

CLW

Cab

D7 double row cab,allowable 2+3 passengers

Engine(Hp)

140

Power(Kw)

103

Wheelbase

3800

Front/Rear Suspension

1180/1815

Steering

Power steering

Approach/departure angle

20/13

Wheels & tire

7.5R16,8.25-16

Tire number

6+1

Tank Dimensions(mm)

/

Cubage (m3)

4

RHD or LHD

optional

Overall Dimensions(mm)

6900×2300×2950

Curb weight (Kg)

5600

Engine

Model

B140 33

Horsepower

140

Maximum output Kw

103

Maximum torque N.m

/

Type

4 cylinders, in-line,4-stroke,diesel engine

Displacement

3.9L

Cummins brand, Euro 3

Driving passenger

2+3

Transmission

WLY 6 speed forward and one reverse, manual

Front Axle

2.5T

Rear Axle

4.5T

Brake System

Air brake

Exhaust brake

Color and LOGO

customized

Electric system

24V

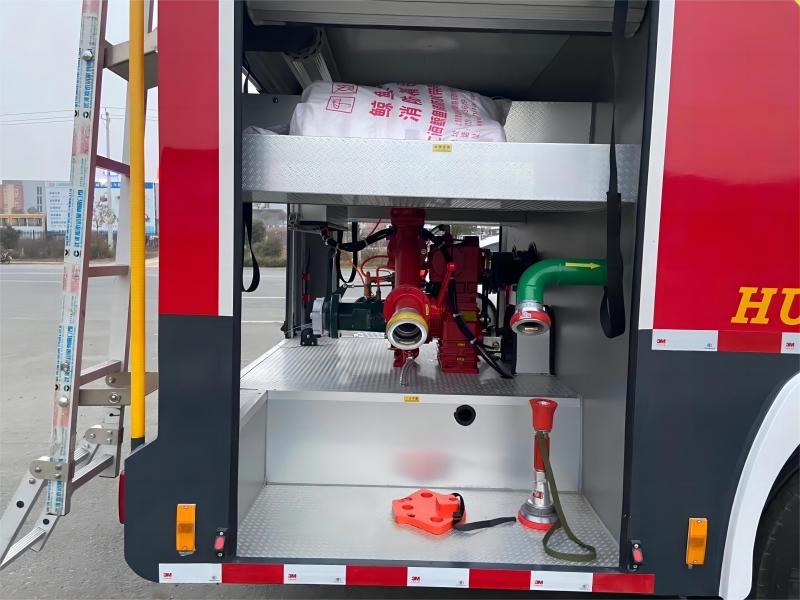

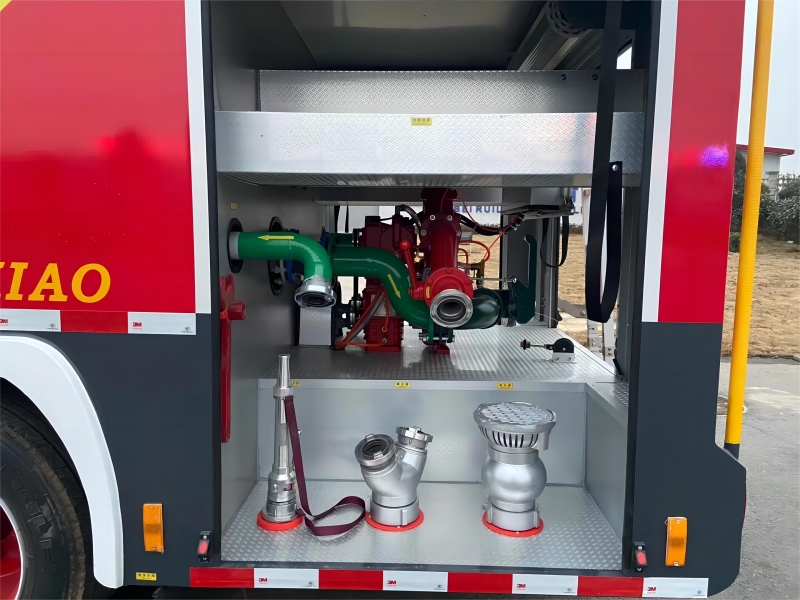

Fire equipment part

Fire pump

CB10/30 , rated pressure 1.0MPa, flow 30L/s

Fire gun

PS30 , flow 30L/s , jet distance ≥30m

Standard configuration

national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun,fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank.

Optional configuration

foam type, dry powder type, stainless tank, other requirements.

Delivery date

Within 30 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
