GVW                                                Driving Type 4x2

Model

CLW

Cab

One and half row cab, sharp head

Engine(Hp)

160

Power(Kw)

118

Wheelbase

3950

Front/Rear Suspension

1065/1835

Steering

Power steering

Approach/departure angle

34/18

Wheels & tire

9.0R20

Tire number

6+1

Body Dimensions(mm)

3700×2100×800

Cubage (m3)

6-8

Steel thickness

Side 3 ,Bottom 4

RHD or LHD

optional

Overall Dimensions(mm)

6850×2460×2800

Curb weight (Kg)

5255

Engine

Model

YC4E160-33

Horsepower

160

Maximum output Kw

118

Maximum torque N.m

600

Type

4 cylinders, in-line,4-stroke,diesel engine

Displacement

4.257L

Yuchai brand, Euro 3

Driving passenger

2

Transmission

FAST 8 speed forward and one reverse, manual

Front Axle

3.6T

Rear Axle

9T

Brake System

air brake

exhaust brake

Color and LOGO

customized

Electric system

24V

Standard configuration

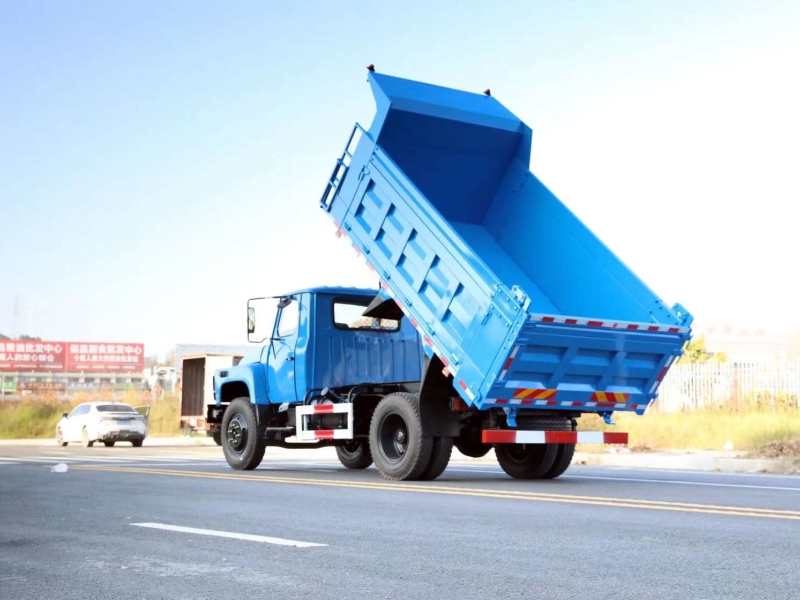

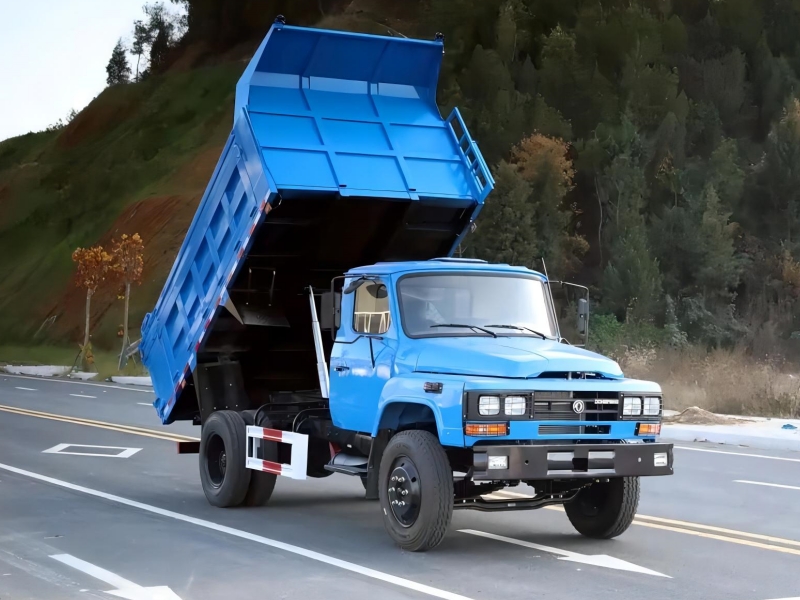

The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 3mm, bottom 4mm.

Delivery date

Within 20 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
